NuTone QTRN080 Ultra Quiet Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QTRN080 Ultra Quiet Fan Parts

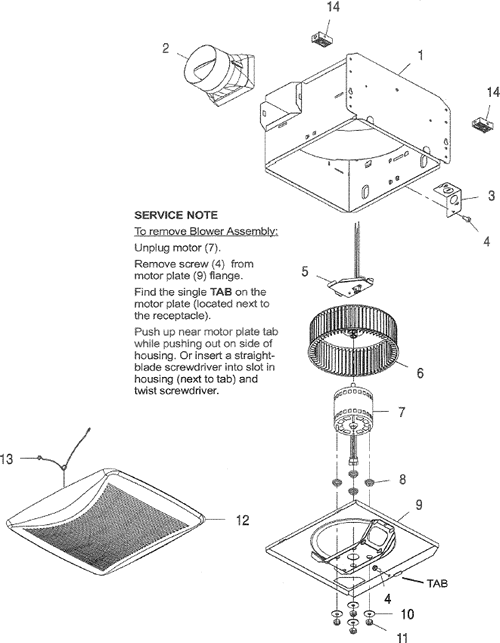

NuTone QTRN080 Ultra Quiet Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1S97016466 HOUSING $63.00
2S97016449 DUCT CONNECTOR-4" $19.80
3S98010102 WIRING PLATE $18.00
4S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
5S97018010 Wire Panel Cover & Harness Assembly - Includes Receptacle for Fan $18.00
6S99020284 BLOWER WHEEL - 8" x 2 3/4", CCW, Black Plastic $28.80
7S99080568 Motor Only for original version #1 see s97016621
This product has been discontinued

7S97016621 BLOWER ASSY Motor/Blade/Bracket version#2 Current $178.20
8S99100491 RUBBER MOUNT ISOLATOR (4 required) $18.00
9S97016468 MOTOR PLATE $35.10
10S99250959 WASHERS #8 c .625 (4 required) $18.00
11S99260558 NUT, Hex Lock #8-32 $18.00
12S97017623 Grille Assembly W/SPRINGS
This product has been discontinued

12FG701 Upgrade Grille Assembly 13.25 X 13.25 10 or 7 spring gap $24.10
13S99140199 GRILLE SPRING (2 required) $18.00
14S97018014 SPACER(2) $5.26
15S99420665 THUMBSCREW #8 - 18 x .375 $18.00
