NuTone QTRN110 Ultra Quiet Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QTRN110 Ultra Quiet Exhaust Fan Parts

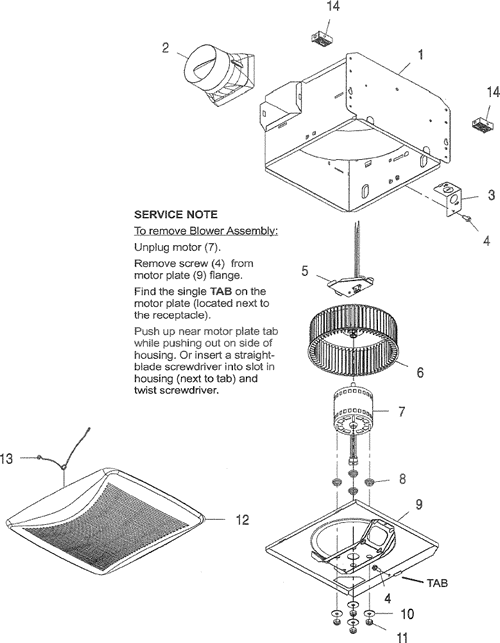

NuTone QTRN110 Ultra Quiet Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S97017863 Blower Wheel - QTRN110-B, QTRN110F-B $27.26
  S97018010 Wire Panel Cover & Wire Harness Assembly - Includes Receptacle for Fan $33.84
1 S97016466 HOUSING $59.22
2 S97016449 DUCT CONNECTOR-4" $27.26
3 S98010102 WIRING PLATE $33.84
4 S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
6 S99020284 BLOWER WHEEL - 8" x 2 3/4", CCW, Black Plastic $33.84
7 S97020048 Motor Assembly Complete-Metal Plate/Motor/Blower Wheel- A&B) no light $215.10
7 S97020971 Motor Assembly for the "c" version (no light) $136.30
8 S99100491 RUBBER MOUNT ISOLATOR (4 required) $27.26
9 S97016468 MOTOR PLATE $35.10
10 S99250959 WASHERS #8 c .625 (4 required) $18.00
11 S99260558 NUT, Hex Lock #8-32 $18.00
12 S97017623 GRILLE ASSY (Grille/Lens/Springs)
This product has been discontinued
13 S99140199 GRILLE SPRING (2 required) $18.00
12 FG701 Upgrade Grille Assembly 13.25 X 13.25 10 or 7 spring gap $24.10
  97017641 Grille old style $18.80
