NuTone QTREN080 Ultra Silent Exhaust Fan 80Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QTREN080 Ultra Silent Exhaust Fan 80Cfm Parts

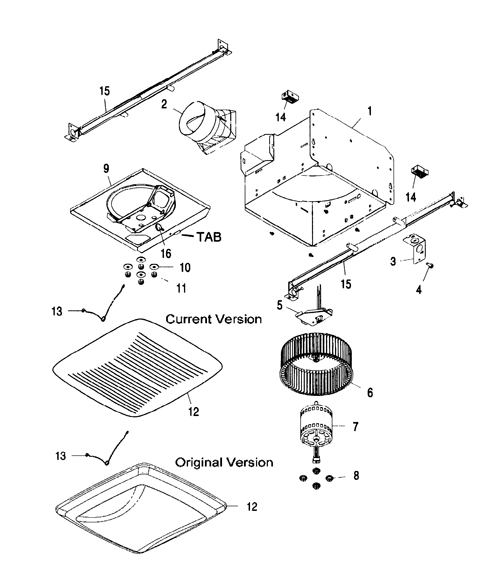

NuTone QTREN080 Ultra Silent Exhaust Fan 80Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
 S97017783 Complete Motor Assembly Current Version #2( use 97020047)
This product has been discontinued
1S97016466 HOUSING $63.00
2S97016449 DUCT CONNECTOR-4" $19.80
3S98010102 WIRING PLATE $18.00
4S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
6S97017863 Blower Wheel - QTREN080-D, QTREN080F-D $18.00
7S97017853 Blower Assembly - Includes 72MM Style Motor, Blower Wheel, & Motor Mounting Plate
This product has been discontinued
7S97020047 BLOWER ASSEMBLY (Versions A, B, C, D) (Motor,Blade,Bracket) $150.30
7S99080561 Motor Only for Original $73.80
6S99020284 BLOWER WHEEL - 8" x 2 3/4", CCW, Black Plastic $28.80
8S99100491 RUBBER MOUNT ISOLATOR (4 required) $18.00
9S97016467 MOTOR PLATE $13.21
9S97016468 Motor Mounting Bracket & Plate QTREN080-A,B,C, QTREN080F-A,B,C $35.10
10S99250959 WASHERS #8 c .625 (4 required) $18.00
11S99260558 NUT, Hex Lock #8-32 $18.00
12S97017623 GRILLE & SPRING ASSEMBLY - 13" X 14" 10.25 SPRING GAP
This product has been discontinued
12FG701 Upgrade Grille Assembly 13.25 X 13.25 10 or 7 spring gap $24.10
12S97016612 Grille & Springs old style (picture in pdf)
This product has been discontinued
13S99140199 GRILLE SPRING (2 required) $18.00
14S97018014 SPACER(2) $5.26
15SQTHB1 HANGER BARS (1 Set) $23.24
16S99420665 THUMBSCREW #8 - 18 x .375 $18.00
