NuTone P8 Interior Blower (For 64000 & Rmip) Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone P8 Interior Blower (For 64000 & Rmip) Parts

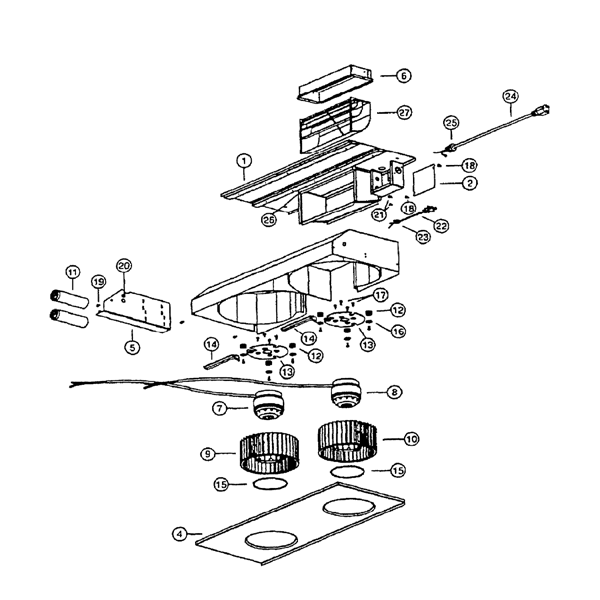

NuTone P8 Interior Blower (For 64000 & Rmip) Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 SV01831 8" TIE RAP $0.23
1SV12997 ROUGH IN PLATE $175.10
2SV13230 OUTLET BOX COVER $12.96
4SV13236 BLOWER COVER $13.52
5SV13240 CAPACITOR COVER $28.88
6SV13296 ADAPTER & DAMPER $41.40
7SV01766 MOTOR $170.10
8SV03457 MOTOR $288.90
9SV03400 BLOWER IMPELLER-CW $129.60
10SV03399 BLOWER IMPELLER-CCW $138.60
11SV02160 CAPACITOR $55.80
12SV02001 MOTOR GROMMET $18.00
13SV11705 MOTOR MOUNT $55.80
14SV01857 WIRE LOOM $28.80
15SV01810 IMPELLER RING $27.00
16SV00871 WASHER $0.53
17SV01927 SCREW $7.13
21SV00613 SCREW $0.68
22SV03494 36" BLOWER POWER CORD $55.80
23SV03495 STRAIN RELIEF $3.85
24SV03496 POWER CORD $26.24
25SV00660 STRAIN RELIEF $11.74
26SV03577 FOAM $17.06
27SV03500 AIR DEFLECTOR $59.40
