NuTone 9113N Deluxe Ceiling Heat-A-Ventlite Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9113N Deluxe Ceiling Heat-A-Ventlite Parts

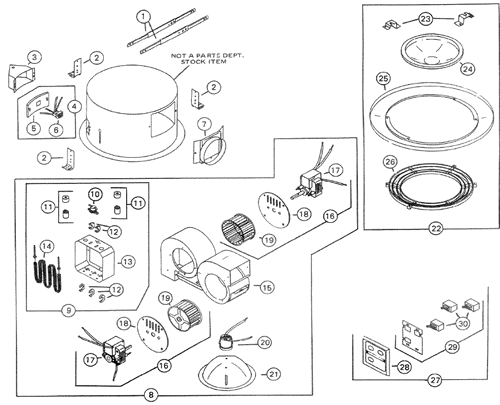

NuTone 9113N Deluxe Ceiling Heat-A-Ventlite Parts breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
19093wh New current production, will not fit into same housing 15 3/8 grille $229.44
10S99271494 THERMAL PROTECTOR $8.64
11S69314000 INSULATOR BUSHING SET $4.54
12S27546000 ELEMENT SUPPORT $1.75
15S61993000 BLOWER HOUSING $26.01
16S69353000 POWER UNIT - VENT, CCW
16S69355000 BLOWER ASSY - HEAT $88.56
17S57769000 MOTOR - (Heat) #J38-075-7072, CCW $50.66
17S58000000 MOTOR - #J2380626150 (9113 & 9113N Vent)
18S57766000 MOTOR MOUNT PLATE $6.03
19S66142000 BLOWER WHEEL - Metal, 3 3/4" X 2 7/8" $19.54
19S66583000 BLOWER WHEEL - (Heat), CW, 3 3/4" x 2" $19.54
2135964000 REFLECTOR $4.93
22S36271000 GRILLE ASSEMBLY(WHITE) $100.10
24S27561000 LENS - 8" X 2" ROUND $15.57
2966W WHITE 3 ROCKER SWITCH $21.54
