NuTone 9111 Deluxe Heat-A-Ventlite Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9111 Deluxe Heat-A-Ventlite Parts

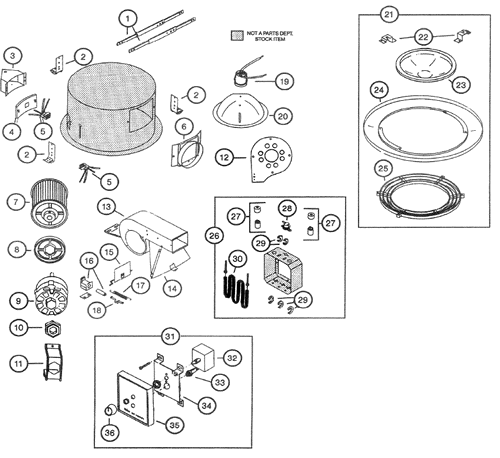

NuTone 9111 Deluxe Heat-A-Ventlite Parts breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
 9093wh 9093WH (brand new current production round heat/vent/light/nightlight) $229.44
819359000 MOTOR MOUNT $4.68
9S27540SER MOTOR - #AA2B0004, CCW $164.48
10S19360000 MOTOR MOUNT HEX Jas# 8110181 $6.18
2035964000 REFLECTOR $4.93
21S36271000 GRILLE ASSEMBLY(WHITE) $100.10
23S27561000 LENS - 8" X 2" ROUND $15.57
27S69314000 INSULATOR BUSHING SET $5.40
28s99271494 THERMAL PROTECTOR $8.64
29S27546000 ELEMENT SUPPORT $2.08
