NuTone 744NT Exhasut Can Lite Bath Fan Parts

Listed below are the parts available for this model.

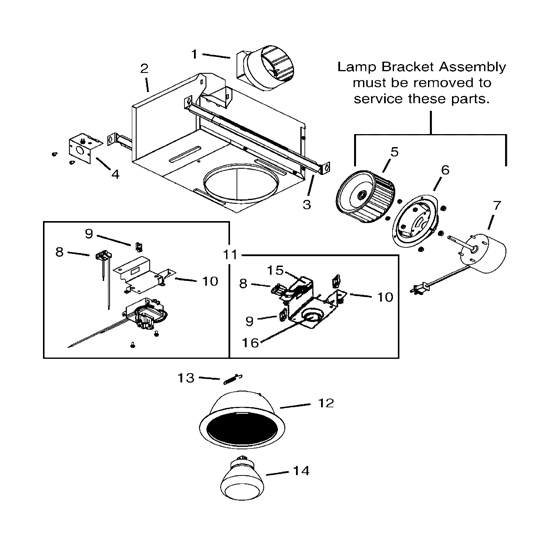

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 744NT Exhasut Can Lite Bath Fan Parts
NuTone 744NT Exhasut Can Lite Bath Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
notshown744NT Completely New 744Nt, May Not Fit Into Existing Housing $109.77
1475PAR30LN Incondecent 75 Watt Bulb $11.26
 S99271322 Thermal Protector
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $1.48
1S97014185 Damper/Duct Connector Assy $6.32
3S98003036 Mounting Bracket $1.89
4S98005512 Wiring Adaptor Plate $1.24
5S99524804 Blower Wheel $14.44
6S99524805 Motor Bracket/Venturi $5.78
7S99080557 Motor - #Ja2C547D, Cw
7S1101122 Motor Only (3 shaft cw) will replace the s99080557 $59.50
7S97016454 Motor/Motor Bracket Assy
8S99271323 Receptacle $1.96
9S99420551 Plastic Wire Clip $1.51
10S97016491 Lamp Bracket For 744Nt $10.22
10S97016846 Lamp Bracket For 744Flnt
11S97016453 Lamp Bracket Assembly For 744Nt $24.44
11S97019016 Lamp Bracket Assembly For 744Flnt - (Includes Ballast) $48.98
12S99528893 Trim Ring/Baffle W/Springs (was S99524802) $15.12
13S99525160 Baffle Spring $1.69
14S97016848 Fluorescent Lamp For 744Flnt $21.06
14S97016848-LED LED Alternative 12W G24Q 4 pin (Replaced Florescent) $28.00
15S97014243 Thermal Protector For 744Nt - Only $19.58
16S99770033 Lamp Socket For 744Nt - Only $4.93
