NuTone 52000 5 Inch Vertical Discharge Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 52000 5 Inch Vertical Discharge Hood Parts

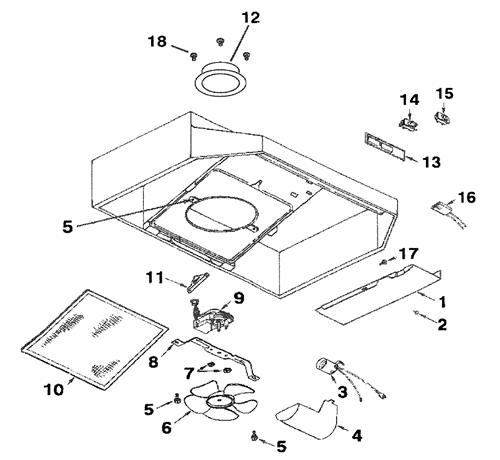

NuTone 52000 5 Inch Vertical Discharge Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
2S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
3S97010966 BULB HOLDER W/WIRES $19.80
4S99110437 LIGHT LENS $18.00
5S97011217 SCREW/NUT KIT $36.90
6S99020272 FAN BLADE $18.00
7S99260428 MOTOR NUT $18.00
8S98005568 MOTOR MTG BRACKET $18.00
999080472 Motor $24.47
10S97006931 ALUMINUM FILTER $18.00
11S99420472 FILTER RETAINER $18.00
12S97014729 DAMPER ASSEMBLY $14.32
16S97005678 PLUG RECEPTACLE $18.00
17S99150471 GROUND SCREW $18.00
