Broan ERV200HC Energy Recovery Ventilator Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan ERV200HC Energy Recovery Ventilator Parts

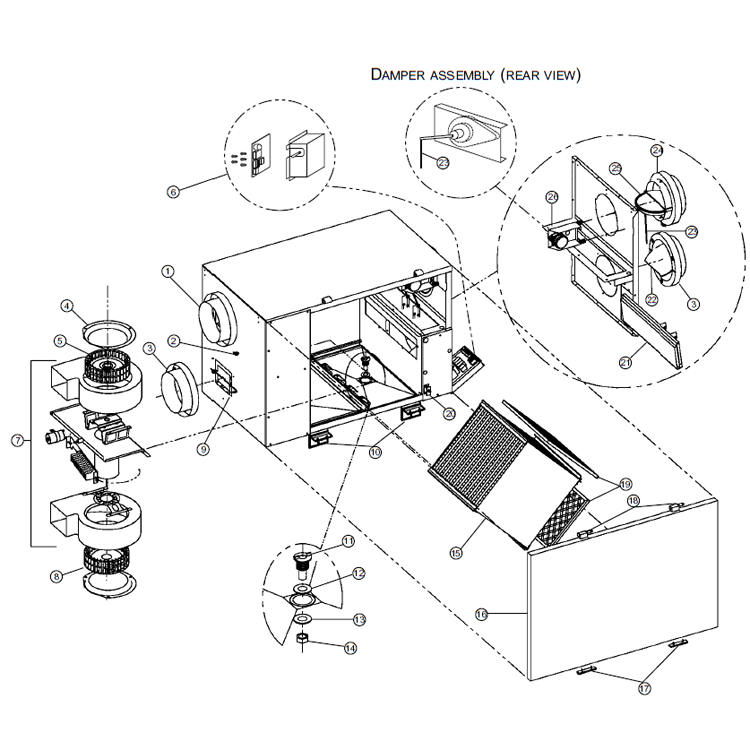

Broan ERV200HC Energy Recovery Ventilator Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 SV02104 Capacitor
This product has been discontinued

1SV13507 Electronic Circuit Board Assembly $273.94
 SV12895 Thermistor $134.10
2SV05960 Double collar port 2 $60.30
3Sv00874 Wing Nut $2.94
 SV12873 Heater Sink $73.53
 SV18304 Fuse for Power Cord - 5mm x 15mm, 3 AMP, 250V $45.00
4SV02257 Upper Left Port for Stale Air Out - Double Collar $29.70
4SV02256 Lower Balancing Port - Double Collar $60.30
 SV12658 Furnace Interlock Switch Kit $47.23
5SV13555 Motor $726.30
6SV12645 Square Balance Damper $6.77
7SV13506 Motor Assembly $701.10
8SV02015 Blower Wheel DBL CW WHEEL 6.290" X 2.000" $124.20
8SV03093 DBL CCW WHEEL 6.19" X 2.39" $125.10
8SV12886 Blower Wheel $122.35
11SV00886 Door Latch $1.31
12SV03136 ERV Core $1,071.00
13SV12648 Door Assembly $210.38
14SV00887 Door Latch Keeper $10.89
15SV00672 Hinge Assembly $8.71
15SV03137 Energy Recovering Ventilator - 110/201 CFM $1,220.40
16SV03096 Filter F/ERV/HRV200 (12 7/8 x11 3/4) $42.30
17SV01825 Safety Interrupter Switch $31.50
18SV12643 Damper Motor/ Actuator Assembly $38.70
19SV02253 Damper Plastic balance $14.45
20SV12620 Damper Rod $45.00
21SV02021 Upper Right Port for Fresh Air from Outside - Double Collar#5 $21.74
22SV12459 Damper #1 $68.40
23SV03124 Damper actuator Assembly $200.70
 SV03148 Parts Bag - Hanger Kit $49.90
 SV13404 Silicone Tube $45.00
0SV03203 Parts Bag - Drain Kit $45.00
