Broan 754RB Fan/Light 70 Cfm Rubbed Bronze Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 754RB Fan/Light 70 Cfm Rubbed Bronze Parts

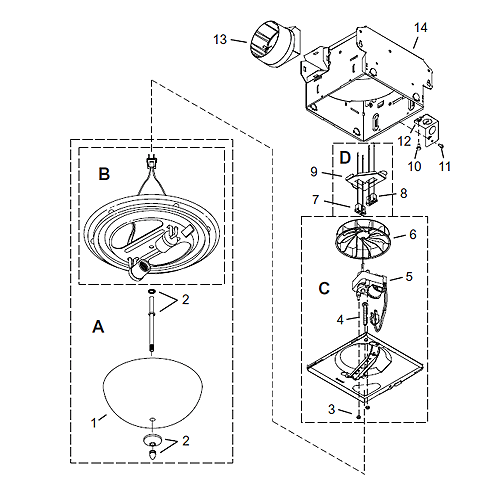

Broan 754RB Fan/Light 70 Cfm Rubbed Bronze Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 754RB Complete New Version
 S97016702 Glass Shade
 S99150471 Ground Screw $1.51
 S99170245 Mounting Screw $1.62
DS97015171 Outlet Cover/Wire Panel Assy. (Includes Both Receptacles) $9.77
CS97015312 Blower Assembly (Key #'S 3 To 6) $51.48
BS97016700 Grille Pan F/754Rb
AS99525297 Light Fixture F/754Rb
2S97016701 Hardware Parts F/754Rb
3S99260428 Motor Mounting Nut - 2 Req. $1.51
4S99150618 Grille Screw $1.69
5S99080522 Motor $37.36
6S99110446 Wheel For Exhaust Fan $5.54
7S99270981 Light Receptacle, White $4.00
8S99270982 Receptacle - Black $4.00
9S98009612 Outlet Cover/Wire Panel (Without Receptacles) $1.67
12S98008868 Electrical Knockout Wiring Plate $2.32
13S97014185 4" Damper/Duct Connector $6.32
