NuTone ZN80ML Bathroom Fan 80 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone ZN80ML Bathroom Fan 80 Cfm Parts

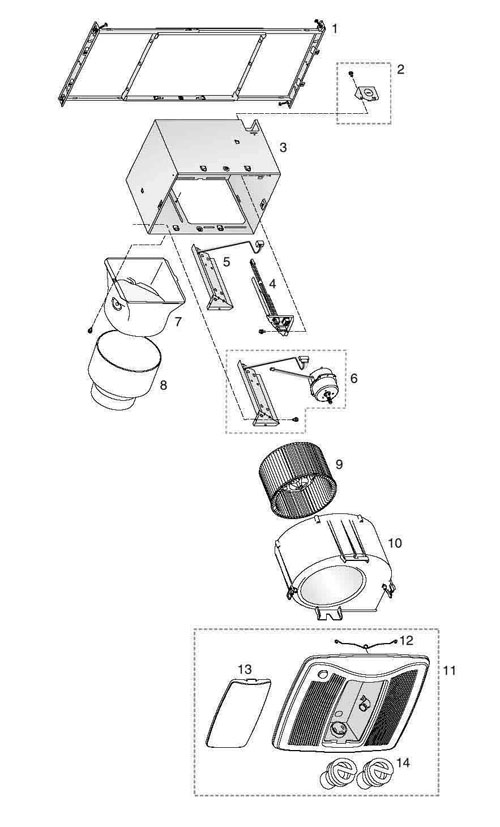

NuTone ZN80ML Bathroom Fan 80 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 S97018349 Mounting Frame $51.70
2 S97018721 Knockout Plate & Screws $27.26
3 S97018382 Housing $37.60
4 S97018474 Wiring Panel/Harness Assembly $42.30
6 S97020846 Control Assembly & Motor ZN80L Rev A $310.20
7 S97018331 6" Duct Connector $59.22
8 S99111513 6" to 4" Reducer $18.00
9 S99020301 Blower Wheel $33.84
10 S97018768 Scroll Assembly Rev A $67.68
11 S97018780 Grille Assembly (Includes Key #'s 11,12,13) $67.68
12 S99140208 Grille Spring (2 Required) $27.26
14 S99271381 CFL Bulb, GU24, 18W (contains Mercury, Dispose of Properly) $28.80
12 S99111542 Light Lens $27.26
  S99271426 Night Light $18.00
