NuTone XN50L Bathroom Fan 50 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone XN50L Bathroom Fan 50 Cfm Parts

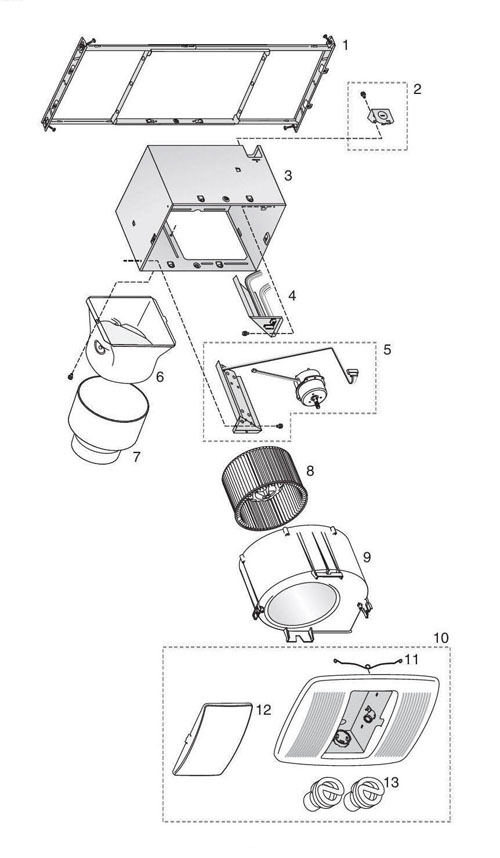

NuTone XN50L Bathroom Fan 50 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
* XN50L Complete New Unit $250.87
1 S97018349 Mounting Frame $51.70
2 S97018721 Knockout Plate & Screws $27.26
3 S97018382 Housing $37.60
4 S97018473 Wiring Panel/Harness Assembly $27.26
5 S97018766 Control Assembly & Motor XN50L $179.01
5 S97019402 Motor & Control Board - XN50L-B $181.87
6 S97018331 6" Duct Connector $59.22
7 S99111513 6" to 4" Reducer $18.00
8 S99020301 Blower Wheel $33.84
9 S97018768 Scroll Assembly $67.68
10 S97018533 Grille & Springs (Includes Keys #'s 11,12,) SEE S97018873
This product has been discontinued
10 S97018873 Grille Assemble for "d" version $101.52
11 S99140208 Grille Spring (2 Required) $27.26
12 S99111400 Light Lens $59.22
12 S99111399 Light Lens (bcd) $27.26
13 S99271381 Bulb, GU24, 18W 3500k Fluorescent (2 Req.) $28.80
  S99271426 Night Light $18.00
