NuTone XN110HL Bathroom Fan 110 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone XN110HL Bathroom Fan 110 Cfm Parts

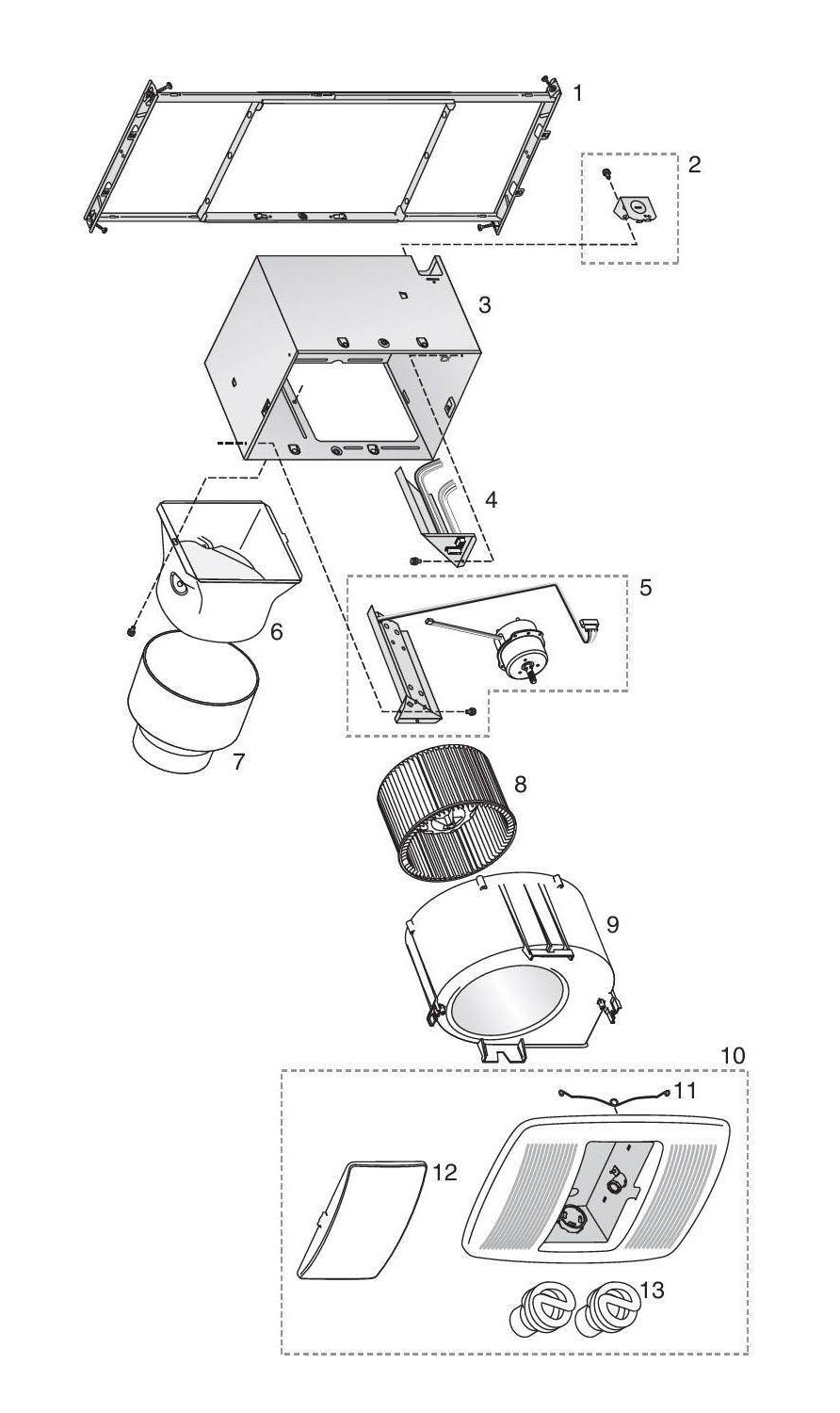

NuTone XN110HL Bathroom Fan 110 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  XN110HL New Current Production XN110HL $300.52
1 S97018349 Mounting Frame $51.70
2 S97018721 Knockout Plate & Screws $27.26
3 S97018382 Housing $37.60
4 S97018474 Wiring Panel/Harness Assembly $42.30
5A S97018756 Motor & Control Board $219.42
5B S97018753 Control Assembly & Motor ZN110 $219.42
7 S97018331 6" Duct Connector $59.22
8 S99020301 Blower Wheel $33.84
9 S97018768 Scroll Assembly $67.68
10 S97019015 Grille & Springs (Includes Key #'s 11,12,) $126.90
11 S99140208 Grille Spring (2 Required) $27.26
12 S99111542 Light Lens $27.26
13 S99271381 Bulb, GU24, 18W, 3500K Fluorescent (2 Req.) $28.80
  S99271426 Night Light $18.00
  New Part $0.00
