NuTone WS330WW 30 in. Allure™ III Series Under-cabinet Range Hood--White On White

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."
NuTone WS330WW 30 in. Allure™ III Series Under-cabinet Range Hood--White On White

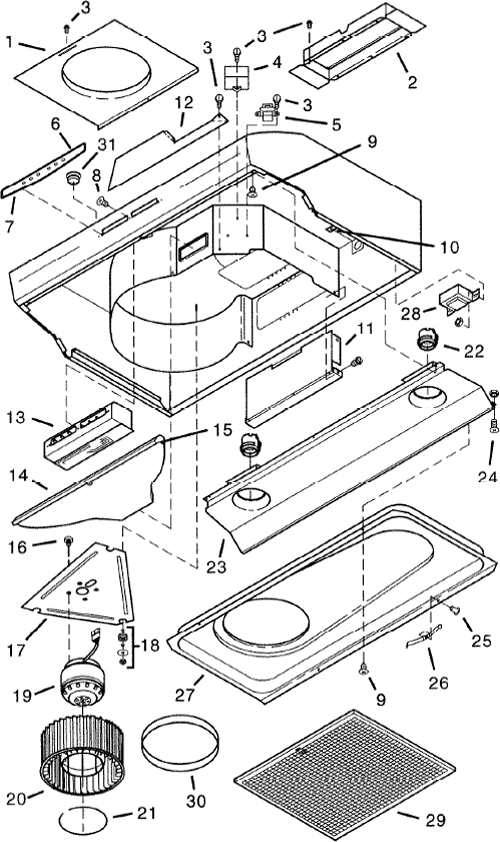

NuTone WS330WW 30 in. Allure™ III Series Under-cabinet Range Hood--White On White breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
19SR520133 Motor Only $114.84
**R564074 FUSE, 10 A. #3 CONTROL $10.22
**S99010308 NON-DUCT FILTER KIT (WS Series 30") $36.14
**S99010309 NON-DUCT FILTER KIT (WS Series 36") $38.68
**S99010310 NON-DUCT FILTER KIT (WS Series 42") $41.46
1R680508 7" ROUND DUCT PLATE $19.88
2R740013 DAMPER/DUCT CONNECTOR $20.74
3R602017 SCREW PACK 8x1/4 hex serr $3.18
5R501031 ISOLATION TRANSFORMER, 24 VOLT $20.24
7R169011 CONTROL PANEL - WHITE (WS3) $23.34
7R169012 CONTROL PANEL - ALMOND (WS3) $22.44
7R169013 CONTROL PANEL - BLACK (WS3) $22.44
7R169014 CONTROL PANEL - BISCUIT (WS3) $23.34
8R601535 SCREW FOR PLASTIC #6X1/2 (WS2,3) $3.60
9R602534 SCREW 2 Pack (#8-18) $3.38
10R602533 GROUND SCREW $3.24
11R680505 SCROLL COVER, OUTLET (WS2,3) $16.04
13R111653 CONTROL ASSY (WS3) $184.32
14R401573 AIR CHUTE (WS1,2,3) $28.06
15R602058 SCREW, FOR PLASTIC (WS1,2,3) $3.26
16R601536 SCREW, METRIC M4X6MM (WS2,3) $6.24
17R651973 MOTOR PLATE (WS2,3) $26.90
18R169009 MOTOR PLATE MOUNTING KIT (WS2,3) $8.52
21R607215 RETAINING RING (WS2,3) $3.92
24R169003 LIGHT PANEL MOUNTING KIT $3.90
26R169016 FILTER SPRING KIT - Metal (Set Of 3) $5.88
27R680514 BOTTOM COVER 30" (WS3) $73.55
27R680530 BOTTOM COVER 42" (WS3) $84.20
29S99010305 ALUMINUM FILTER KIT-30 $70.86
29S99010306 ALUMINUM FILTER KIT-36 $79.28
29S99010307 ALUMINUM FILTER KIT-42 $87.72
31R607660 PLUG BLACK .406 HOLE $3.42
