NuTone VL3668RLG Deluxe Fan-Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone VL3668RLG Deluxe Fan-Light Parts

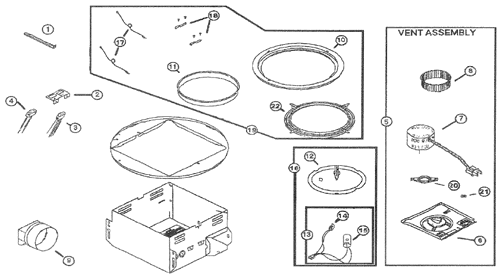

NuTone VL3668RLG Deluxe Fan-Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 S44388000 HANGER BAR $33.84
4 S99270982 RECEPTACLE (BLACK) $18.00
5 S97017705 POWER UNIT ASSEMBLY $144.76
5 S10060300 Blower Wheel for the splined motor Cw, 6-1/8" X 2" $19.83
9 S101183000 DUCT ADAPTER ASSEMBLY $27.26
11 S61753000 Lens - Glass 9 1/2" Round X 3/4" ( Not Like The Old Glass) $56.40
13 S85950000 REFLECTOR, Lamp Socket Assembly $27.26
14 S85983000 LAMP SOCKET NITE LIGHT $1.78
15 S85942000 LAMP SOCKET SNAP IN $2.62
16 SNT85974000 REFLECTOR W/ Sockets $42.30
This product has been discontinued
18 S33426000 RETAINER, LENS $0.10
  S99271426 Night Light $18.00
  750 New current production(WILL NOT FIT INTO EXISTING HOUSING)9x9housing 15" Round Grille $217.29
