NuTone VF707RCN Exhaust Fan-Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone VF707RCN Exhaust Fan-Light Parts

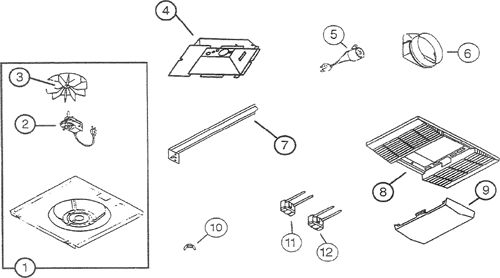

NuTone VF707RCN Exhaust Fan-Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
0 S1022B000 Stud & Nut $33.84
1 S0504B000 MOTOR ASSY - Motor, Blade, Bracket $73.32
2 S87547000 MOTOR Only see 0504b (Motor Blade Bracket) $78.02
3 S82403000 BLOWER WHEEL - White Plastic, 5"x 1 1/4" $27.26
4 S89765000 REFLECTOR $27.26
4 S99770112 LAMP SOCKET - 100W $27.26
6 S101183000 DUCT ADAPTER $27.26
8 S85315000 GRILLE / LENS, 12 1/4" x 10 3/4" $85.54
9 S89108000 LENS - Plastic (10 3/4" x 5 1/2" x 1/2") $27.26
11 SNT10034000 RECEPTACLE (BLACK) $18.00
12 S82304000 RECEPTACLE (WHITE) $18.00
