NuTone VF305CN Valuetest Exhaust Fan-Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone VF305CN Valuetest Exhaust Fan-Light Parts

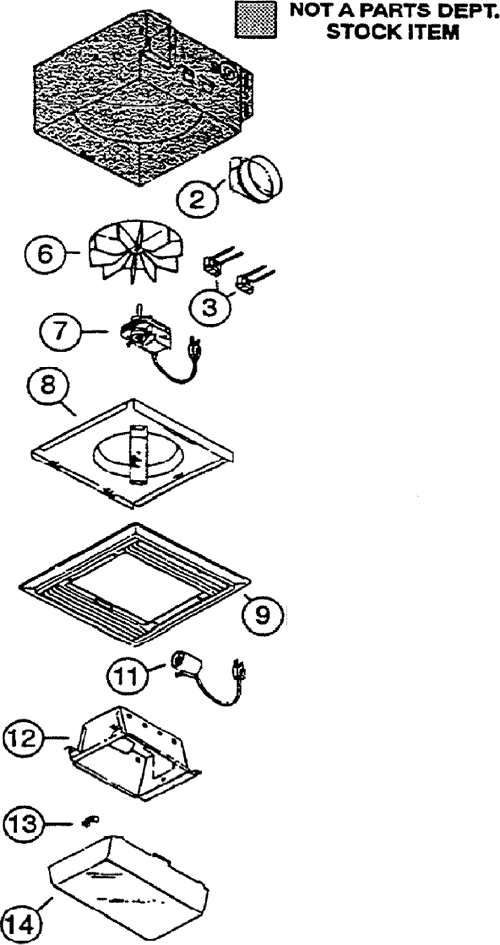

NuTone VF305CN Valuetest Exhaust Fan-Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
2 S101183000 DUCT ADAPTER $27.26
3 SNT10034000 RECEPTACLE (BLACK) $18.00
6 S68920000 IMPELLER WHEEL $27.26
7 S65878000 MOTOR - #J23805059, Shaft length 1-3/4", CCW,mounts opposite of shaft) $96.82
5 S85315000 GRILLE & LENS ASSEMBLY - 12 1/4x10 3/4" New Style Rectangle Lens $85.54
7 S65776000 LENS - Plastic (8 3/4" x 5 3/4" x 2") grille obsoleted $34.78
