NuTone VC305C3 Village Ductless Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone VC305C3 Village Ductless Fan Parts

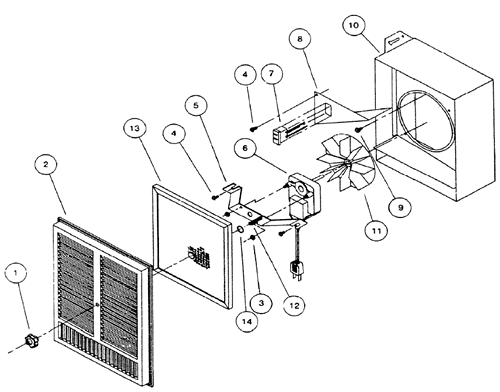

NuTone VC305C3 Village Ductless Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S0256B000 KNOB white $27.26
3 S89427015 NUT TWIN WHIZ LOCK
This product has been discontinued

5 S89425000 BRACKET MOTOR MOUNTING
This product has been discontinued

6 S89424000 MOTOR - #J238-050-8089 (cw mounts opposite of shaft) $81.78
7 S66204000 PLUG-RECEPTACLE (Black) $27.26
11 S68920000 IMPELLER WHEEL $27.26
13 S0239B000 FILTER ( 7 5/8 X 7) $27.26
