NuTone V84 Non-Duct Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone V84 Non-Duct Range Hood Parts

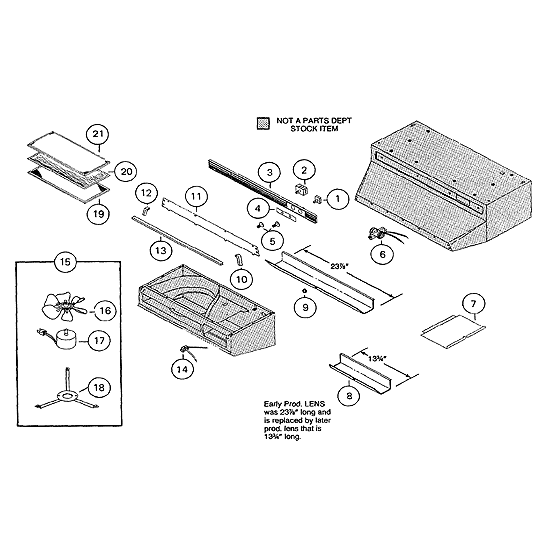

NuTone V84 Non-Duct Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
0HCK44 Cord Kit with 6' cord and plug $42.30
2S26546000 SPEED SWITCH-FAN $64.80
14S99270982 RECEPTACLE (BLACK) $18.00
1618760000 FAN BLADE ASSEMBLY (Metal - 6 Blade) $16.44
1726721SER MOTOR MODIFIED CCW 3/4" SHAFT 1550 RPM W/ PLUG $119.43
19S19879000 FILTER - ALUMINUM (23 13/16 x 10 5/8) $36.90
21S18722000 CARBON FILTER (23 3/4 x 10 3/8) $109.80
