NuTone V769RF Fluorescent Fan-Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone V769RF Fluorescent Fan-Light Parts

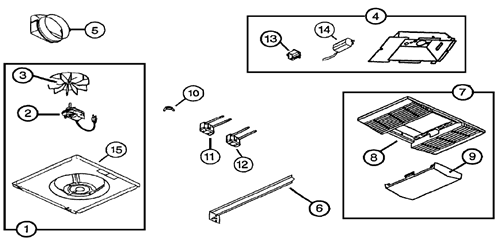

NuTone V769RF Fluorescent Fan-Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
0 S1022B000 Stud & Nut $33.84
  S0504B000 MOTOR ASSY - Motor, Blade, Bracket $73.32
1 S87546000 B UNIT ASSY COMPLETE - Obsolete see 0504b000
This product has been discontinued

2 S87547000 MOTOR Only see 0504b (Motor Blade Bracket) $78.02
3 S82403000 BLOWER WHEEL - White Plastic, 5"x 1 1/4" $27.26
5 S101183000 DUCT ADAPTER $27.26
6 S85315000 GRILLE & LENS - 12 1/4 x10 3/4" -Old Style Rectangle Lens $85.54
7 S85316000 GRILLE ONLY - NO LENS, 12 1/4" x 10 3/4" $84.60
9 S89108000 LENS - Plastic (10 3/4" x 5 1/2" x 1/2") $27.26
11 S99270982 RECEPTACLE (BLACK) $18.00
12 82304000 RECEPTACLE (WHITE) $18.00
13 S89877000 LAMP SOCKET
This product has been discontinued
