NuTone V34N Non-Duct Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

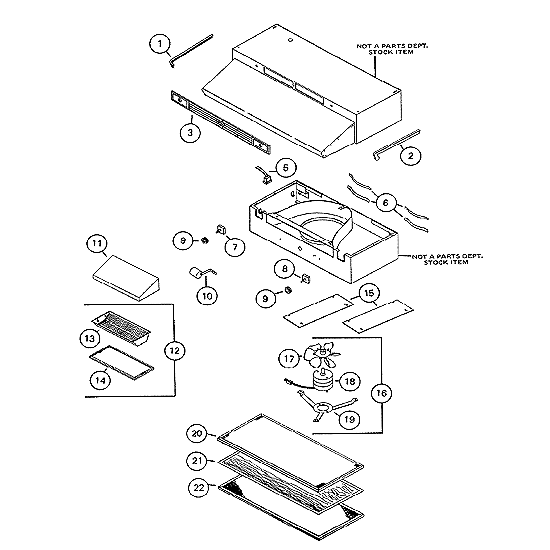

NuTone V34N Non-Duct Range Hood Parts
NuTone V34N Non-Duct Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
0 HCK44 Cord Kit with 6' cord and plug $42.30
5 S99270982 RECEPTACLE (BLACK) $18.00
7 S26546000 SPEED SWITCH-FAN $61.10
17 18760000 FAN BLADE ASSEMBLY (Metal - 6 Blade) $16.44
18 S26721SER MOTOR - #JA2M120i $119.43
20 S18722000 CARBON FILTER (23 3/4 x 10 3/8) $103.40
22 S19879000 FILTER - ALUMINUM (23 13/16 x 10 5/8) $36.90
