NuTone V34 Non-Duct Range Hood Parts

Listed below are the parts available for this model.

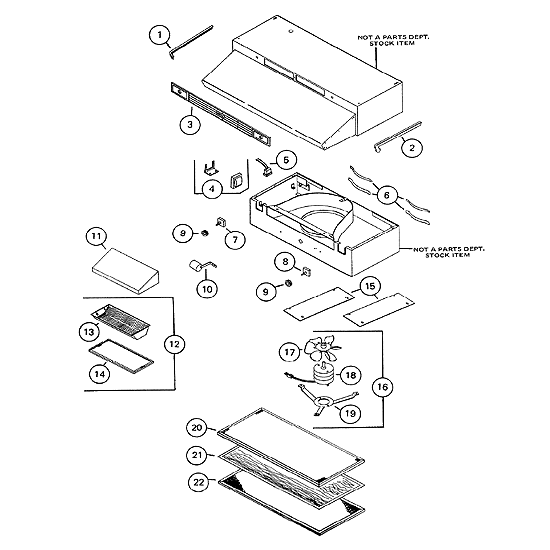

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone V34 Non-Duct Range Hood Parts
NuTone V34 Non-Duct Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S26546000 SWITCH
This product has been discontinued

  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
0 HCK44 Cord Kit with 6' cord and plug $42.30
5 S99270982 RECEPTACLE (BLACK) $18.00
7 18663000 SWITCH - Old Version 84 - New Version See 26546
This product has been discontinued

17 18760000 FAN BLADE ASSEMBLY (Metal - 6 Blade) $16.44
18 26721SER MOTOR MODIFIED - CCW 2800 RPM 3/4" SHAFT $119.43
20 S18722000 CARBON FILTER (23 3/4 x 10 3/8) $103.40
22 S19879000 FILTER - ALUMINUM (23 13/16 x 10 5/8) $36.90
