NuTone RL6300H Economy Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone RL6300H Economy Hood Parts

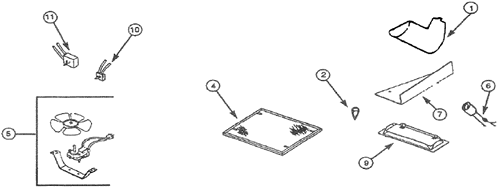

NuTone RL6300H Economy Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1S99110437 LIGHT LENS $18.00
2S99420472 FILTER RETAINER $18.00
4S97006931 ALUMINUM FILTER 8 3/4X10 1/2 $18.00
5S97012248 POWER UNIT ASSEMBLY (ccw w/ 3 prong plug) $85.50
6S97010966 BULB HOLDER W/WIRES $19.80
8S99091116 NAMEPLATE - BLACK $18.00
10S97016970 FAN & LIGHT SWITCH - (Black)(2 Switches) $45.00
10S97016971 MOTOR & LIGHT SWITCH SET - (White)(2 Switches) $18.00
