NuTone RL6100F-R Convertible Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone RL6100F-R Convertible Range Hood Parts

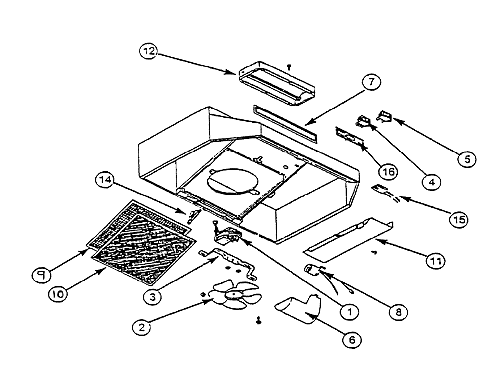

NuTone RL6100F-R Convertible Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
0 HCK44 Cord Kit with 6' cord and plug $42.30
2 S99020272 FAN BLADE $27.26
3 S98005568 MOTOR MTG BRACKET $27.26
6 S99110437 LIGHT LENS $27.26
7 S99091020 LOUVER COVER PLATE - White $27.26
7 S99091021 LOUVER COVER PLATE - Almond
This product has been discontinued
7 S99091022 LOUVER COVER PLATE - Black $27.26
7 S99080531 MOTOR (replaced with 97012248)(ccw, 2800rpm, 3 prong plug) $85.50
11 S98006621 OUTLET BOX COVER/WIRING COVER $27.26
13 SR680508 7" ROUND DUCT PLATE $37.60
9 SK6387000 Non ducted filter 11 1/4"x8 7/16"x3/8" $18.00
10 SK6388000 Aluminum Filter 11 1/4"x8 1/4"x3/32" $27.26
14 S99420472 FILTER RETAINER $27.26
15 S97005678 PLUG RECEPTACLE $33.84
16 SNTK7615 NAMEPLATE-WHITE $3.66
  S97016973 Fan/light Switch Kit-Biscuit $27.26
  S97016971 Fan/light Switch Kit-White $27.26
  S97016970 Fan/light Switch Kit-Black $42.30
