NuTone QTXEN150FLT Ventilation Fan/Light 150 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QTXEN150FLT Ventilation Fan/Light 150 Cfm Parts

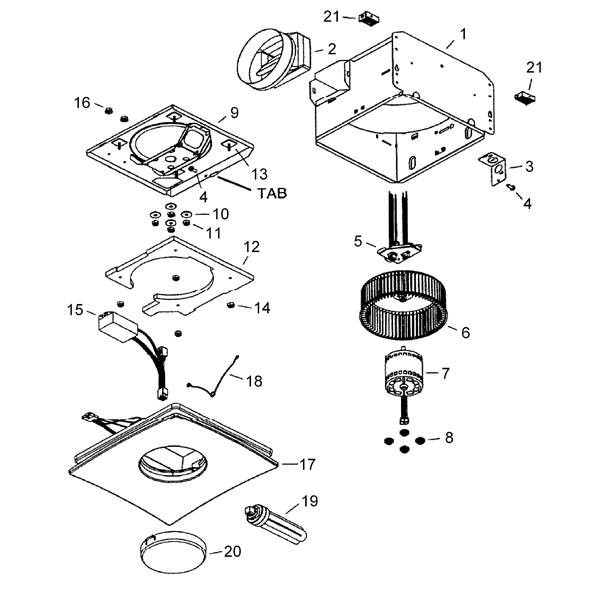

NuTone QTXEN150FLT Ventilation Fan/Light 150 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 QTXE110150DCL New Production Complete (will not fit into existing housing) $323.40
1S97016466 HOUSING $63.00
2S97016450 DUCT CONNECTOR-6" $21.60
3S98010102 WIRING PLATE $18.00
4S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
5S97018011 Wire Panel Cover & Harness Assembly - Includes Receptacles for Fan & Lights $27.00
6S97017863 Blower Wheel - QTXEN150FLT-B,C,D,E,F versions $18.00
6S99020284 BLOWER WHEEL - 8" x 2 3/4", CCW, Black Plastic-A version $28.80
7S99080565 MOTOR - Shaft Size 1 3/4" for Original Version A $135.00
7S97020012 Motor Assembly (motor,blade, bracket-E,F) $214.20
7S97016591 BLOWER ASSEMBLY Motor/Blade/Flat Bracket version#,B,C,D $199.80
7S97016926 Blower Assembly - QTXEN150FLT-A - Includes Motor, Blower Wheel, & Motor Mounting Plate $160.20
8S99100491 RUBBER MOUNT ISOLATOR (4 required) $18.00
9S97016901 MOTOR PLATE $11.74
10S99250959 WASHERS #8 c .625 (4 required) $18.00
11S99260558 NUT, Hex Lock #8-32 $18.00
12S99500397 INSULATION
This product has been discontinued

15S97016618 BALLAST ASSEMBLY
This product has been discontinued

16S99260423 NUT, Hex #8-32 (4 required) sold each $18.00
17S97018272 GRILLE ASSEMBLY W/ LENS (new Version #2 w/ rectangle lens)w/ conversion kit, must remove old ballast
This product has been discontinued

18S99140199 GRILLE SPRING (2 required) $18.00
19S99271358 FLUORESCENT BULB, 42 Watt 4pin (18W-2pin 99271381) $49.50
20S99111287 LENS(round ver#1 obsoleted) 99111400 ver#2 Rectangle $29.70
21S97018014 "I" Joist Spacer Block - 2 Required $5.26
 S99271426 Night Light 4 watt $18.00
 QTHB1 Hanger Bar Kit - Kit Includes 2 Hanger Bars $18.36
