NuTone QTXEN110S Humidity Sensing Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QTXEN110S Humidity Sensing Fan Parts

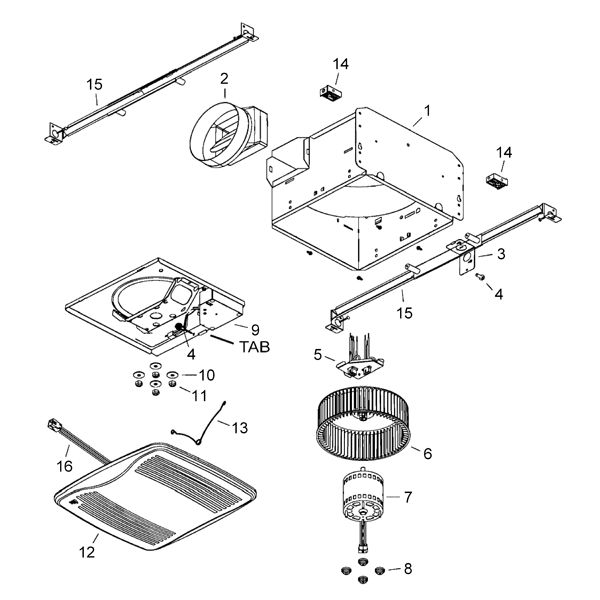

NuTone QTXEN110S Humidity Sensing Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1S97016466 HOUSING $63.00
2S97016450 DUCT CONNECTOR-6" $21.60
3S98010102 WIRING PLATE $18.00
4S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
5S97017086 WIRE PANEL/WIRE HARNESS - $37.80
5S97017085 Wire Panel Cover & Harness Assembly - QTXEN110S-B - Includes Receptacle for Fan $30.60
6S97017863 Blower Wheel - QTXEN110S-B,C versions $18.00
6S99020284 BLOWER WHEEL - 8" x 2 3/4", CCW, Black Plastic "A" version $28.80
7S99080580 Motor Only for version#A prior to 7/08 see 97017784
This product has been discontinued

7S97020048 Motor ,Blade, Bracket Assembly (non lighted) A no humidity sensor $215.10
7S97020972 MOTOR ASSEMBLY w/ Sensor ( motor, blade,bracket) $333.00
7S97020051 Motor & Blower Wheel - QTXEN110S-C (lighted) $160.20
9S97020052 Humidity Control Sensor $145.80
10S99250959 WASHERS #8 c .625 (4 required) $18.00
11S99260558 NUT, Hex Lock #8-32 $18.00
12S1102739 GRILLE ASSEMBLY - INCLUDES HUMIDITY CONTROL MODULE, SENSOR, & SPRINGS $198.90
13S99140199 GRILLE SPRING (2 required) $18.00
14S97018014 SPACER(2) $5.26
14S99100491 RUBBER MOUNT ISOLATOR (4 required) $18.00
15QTNHB1 HANGER BARS (1 Set) $15.98
16S99271344 SENSOR WIRE HARNESS $18.00
