NuTone QTXEN110FLT Ventilation Fan/Light 110 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QTXEN110FLT Ventilation Fan/Light 110 Cfm Parts

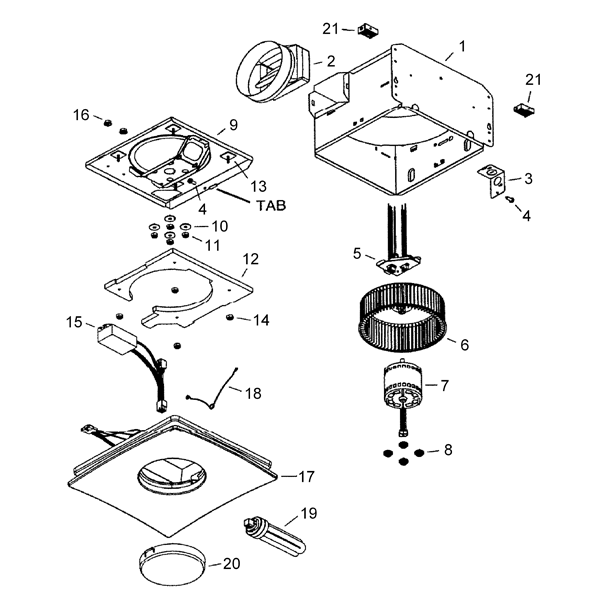

NuTone QTXEN110FLT Ventilation Fan/Light 110 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 SQTHB1 Hanger Bar Kit - Kit Includes 2 Hanger Bars $17.64
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $0.82
1S97016466 HOUSING $30.64
2S97016450 DUCT CONNECTOR-6" $9.24
3S98010102 WIRING PLATE $3.66
4S99170245 SHEET METAL SCREW #8-18 X .375 $0.82
5S97018011 Wire Panel Cover & Harness Assembly - Includes Receptacles for Fan & Lights $10.68
6S97017863 Blower Wheel - QTXEN110FLT-B,C $4.68
6S99020284 BLOWER WHEEL - 8" x 2 3/4", CCW, Black Plastic(original Version) $5.10
7S99080580 MOTOR Only(A-original, new see blower assembly 97017884)
7S97017851 MOTOR ASSEMBLY see 97017856
7S97020048 Motor Assy Moter/blade/Bracket A version $94.10
7S97017856 Motor Assembly $86.24
8S99100491 RUBBER MOUNT ISOLATOR (4 required) $2.60
9S97016901 PLATE for Motor $11.74
9S97016468 Motor Mounting Bracket & Plate - QTXEN110FLT-A $17.72
10S99250959 WASHERS #8 c .625 (4 required) $0.53
11S99260558 NUT, Hex Lock #8-32 $0.64
15S97016864 BALLAST ASSEMBLY $42.34
16S99260423 NUT, Hex #8-32 $0.82
17S97018272 GRILLE ASSEMBLY W/ LENS(not pictured-NEW Grille&Lens W/Rectangle Lens) $96.46
18S99140199 GRILLE SPRING (2 required) $3.92
19S99271358 FLUORESCENT BULB, 42 Watt $33.84
19S99271381 Bulb - QTXEN110FLT-C - New Grille Design - Fluorescent, 18 Watt, GU24 Base - 2 Required $12.82
20S99111287 LENS Round(old Vers. 1 (new Rectrangle Lens 99111400-Ver2) $21.26
20S99111400 LENS (NEW RECTANGLE LENS) $8.78
21S97018014 "I" Joist Spacer Block - 2 Required $1.48
