NuTone QTXEN080 Ultra Silent Fan 80Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QTXEN080 Ultra Silent Fan 80Cfm Parts

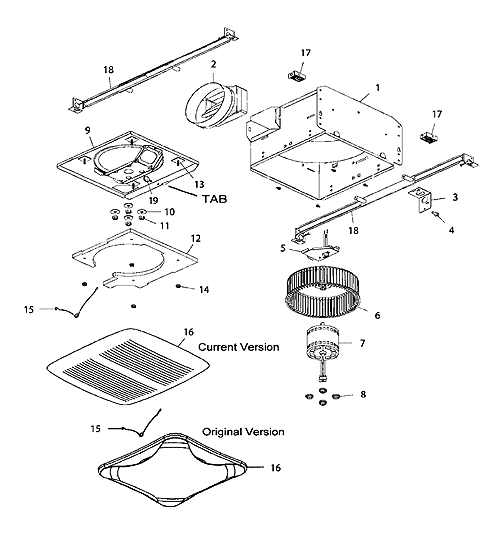

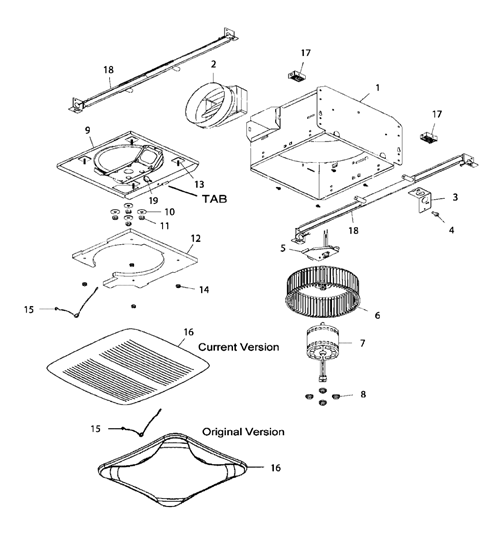

NuTone QTXEN080 Ultra Silent Fan 80Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 QTXE080 New Current production $165.10
1S97016466 HOUSING $63.00
2S97016450 DUCT CONNECTOR-6" $21.60
3S98010102 WIRING PLATE $18.00
4S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
5S97018010 WIRE PANEL/HARNESS ASSEMBLY $18.00
6S99020284 BLOWER WHEELAversion - 8" x 2 3/4", CCW, Black Plastic $28.80
6S97017863 Blower Wheel - QTXEN080-B,C version $18.00
7S97017783 MOTOR ASSEMBLY (motor, blade,bracket) see 97020047
This product has been discontinued

7S97020047 MOTOR ASSEMBLY (motor, blade,bracket) A,B,C,D,E $150.30
7S97021081 Motor Assembly for "F" version $189.90
8S99100491 RUBBER MOUNT ISOLATOR (4 required) $18.00
9S97016467 MOTOR PLATE $13.21
9S97016468 Motor Mounting Bracket & Plate - QTXEN080-A,B $35.10
10S99250959 WASHERS #8 c .625 (4 required) $18.00
11S99260558 NUT, Hex Lock #8-32 $18.00
15S99140199 GRILLE SPRING (2 required) $18.00
16S97016460 GRILLE ASSY (old version) see s97017622
This product has been discontinued

16S97017622 GRILLE ASSEMBLY w/ springs 13x14 (Current Nutone Version) $40.50
17S97018014 SPACER(2) $5.26
18QTNHB1 HANGER BARS (1 Set) $15.98
19S99420665 THUMBSCREW #8 - 18 x .375 $18.00
 RDFQF Radiation Damper $107.93
