NuTone QTRN110L Ventilation Fan/Light 110 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QTRN110L Ventilation Fan/Light 110 Cfm Parts

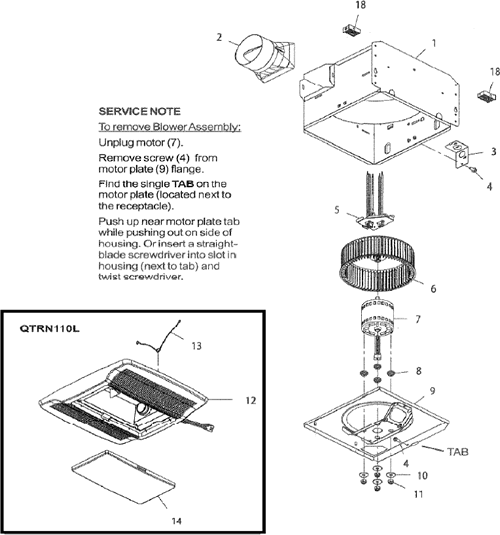

NuTone QTRN110L Ventilation Fan/Light 110 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 S97016466 Housing $59.22
2 S97016449 Duct Connector-4" $27.26
3 S98010102 Wiring Plate $33.84
4 S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
5 S97018011 Wire Panel Cover & Wire Harness Assembly - Includes Receptacles for Fan & Light $33.84
6 S97017863 Blower Wheel - QTRN110L-B $27.26
6 S99020284 Blower Wheel -A version 8" x 2 3/4", CCW, Black Plastic $33.84
7 S97020048 Motor Assembly Complete-Metal Plate/Motor/Blower Wheel $215.10
8 S99100491 Rubber Mount Isolator (4 required) $27.26
9 S97016468 MotorMounting bracket $35.10
10 S99250959 Washer #8 c .625 (4 required) $18.00
11 S99260558 NUT, Hex Lock #8-32 $18.00
12 S97018273 Grille Assy(Grille/Lens/Springs) (s97016543 obsoleted)
This product has been discontinued
13 S99140199 Grille Spring(2 required) $18.00
14 S99111401 Lens- 10 1/2" x 5 1/2"
This product has been discontinued
