NuTone QTRN080L Ventilation Fan & Light 80 Cfm Parts

Listed below are the parts available for this model.

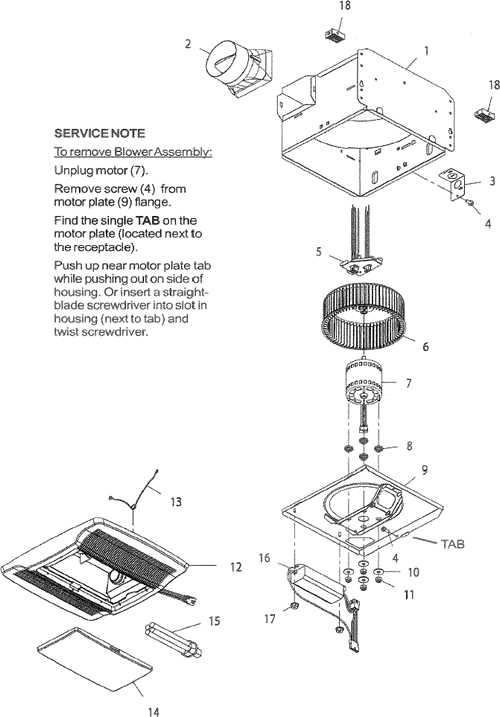

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QTRN080L Ventilation Fan & Light 80 Cfm Parts
NuTone QTRN080L Ventilation Fan & Light 80 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 S97016466 HOUSING $59.22
2 S97016449 DUCT CONNECTOR-4" $27.26
3 S98010102 WIRING PLATE $33.84
4 S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
5 S97018011 WIRE PANEL/HARNESS ASSEMBLY $33.84
6 S99020284 BLOWER WHEEL - 8" x 2 3/4", CCW, Black Plastic $33.84
7 S97016621 MOTOR ASSY Motor/Blade/Bracket version#2 Current $168.26
7 S99080568 Motor Only for version#A see 97016621
This product has been discontinued

8 S99100491 RUBBER MOUNT ISOLATOR (4 required) $27.26
9 S97016468 MOTOR PLATE $35.10
10 S99250959 WASHERS #8 c .625 (4 required) $18.00
11 S99260558 NUT, Hex Lock #8-32 $18.00
12 S97018273 GRILLE ASSY(includes Grille/lens/springs (s97016543 obsoleted)
This product has been discontinued

13 S99140199 GRILLE SPRING (2 required) $18.00
14 S99111401 LENS Plastic- 10 1/2" x 5 1/2"
This product has been discontinued

18 S97018014 SPACER(2) $27.26
  S99271426 Night Light $18.00
