NuTone QTRN050 Ultra Quiet Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QTRN050 Ultra Quiet Exhaust Fan Parts

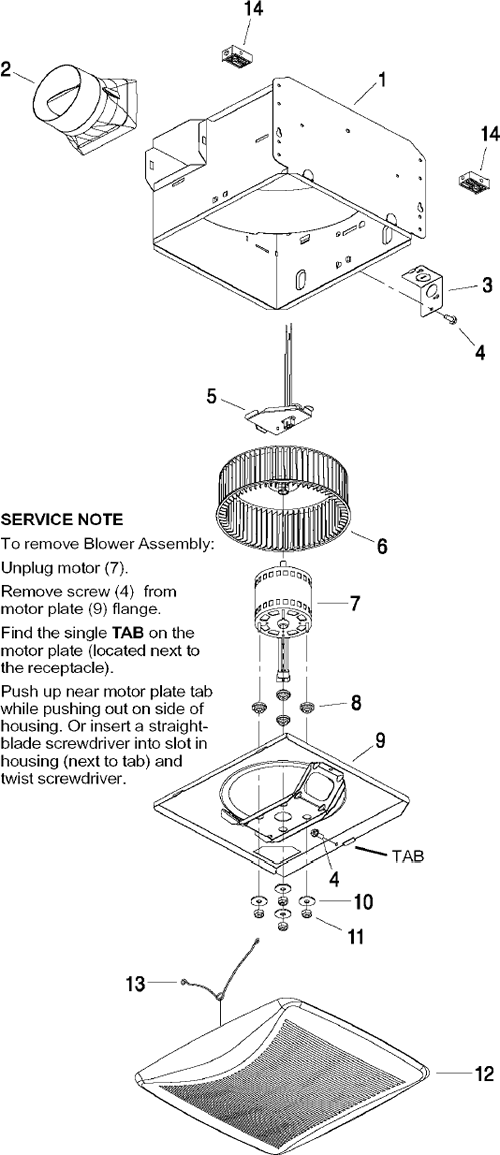

NuTone QTRN050 Ultra Quiet Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 S97016466 HOUSING $59.22
2 S97016449 DUCT CONNECTOR-4" $27.26
3 S98010102 WIRING PLATE $33.84
4 S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
6 S99020284 BLOWER WHEEL - 8" x 2 3/4", CCW, Black Plastic(original Version) $33.84
7 S97020047 Motor Assemble (Motor/blade/bracket 80cfm ) obsoleted 50cfm, BCD $150.30
7 S97016621 MOTOR ASSY Motor/Blade/Bracket )(80 cfm, obsoleted the 50 A $168.26
8 S99100491 RUBBER MOUNT ISOLATOR (4 required) $27.26
9 S97016468 MOTOR PLATE $35.10
10 S99250959 WASHERS #8 c .625 (4 required) $18.00
11 S99260558 NUT, Hex Lock #8-32 $18.00
12 S97017623 GRILLE ASSY W/SPRINGS - (13 X 14)
This product has been discontinued

12 FG701 Upgrade Grille Assembly 13.25 X 13.25 10 or 7 spring gap $24.10
13 S99140199 GRILLE SPRING (2 required) $18.00
