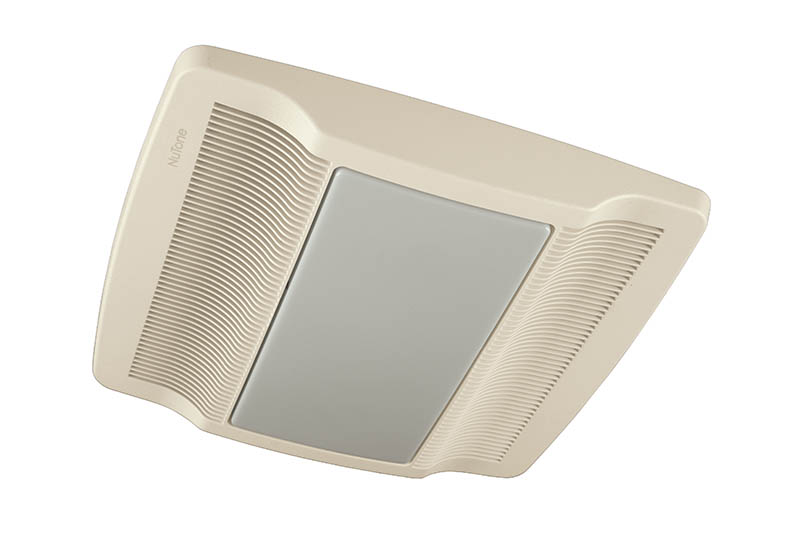

NuTone QTREN110FLT Exhaust Fan With Light 110 Cfm Parts

Listed below are the parts available for this model.

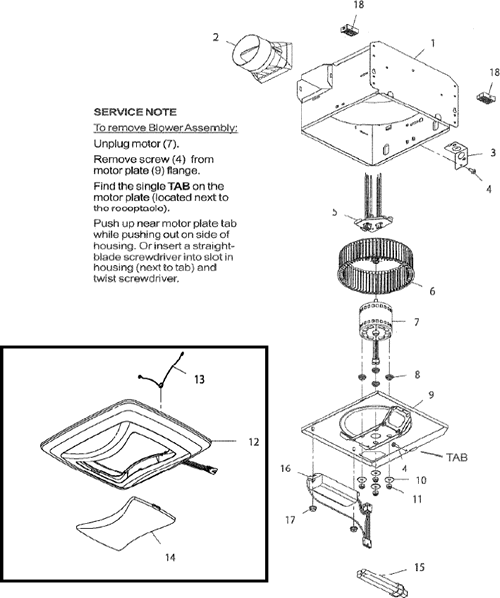

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QTREN110FLT Exhaust Fan With Light 110 Cfm Parts
NuTone QTREN110FLT Exhaust Fan With Light 110 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $1.48
1S97016466 HOUSING $28.96
2S97016449 DUCT CONNECTOR-4" $8.73
3S98010102 WIRING PLATE $3.46
4S99170245 SHEET METAL SCREW #8-18 X .375 $1.62
5S97018011 WIRE PANEL/HARNESS ASSEMBLY $10.10
6S99020284 BLOWER WHEEL - 8" x 2 3/4", CCW, Black Plastic VERSION A $7.56
6S97017863 BLOWER WHEEL- QTREN110FLFT-B,C, QTREN110FLT-B,C $5.26
7S97020050 MOTOR ASSEMBLY Motor/Blade/Flat Brkt version w/lite $90.58
7S99080580 MOTOR ONLY FOR VERSION#A PRIOR TO 7/08
8S99100491 RUBBER MOUNT ISOLATOR (4 REQUIRED) $2.47
9S97016901 MOTOR PLATE $11.74
10S99250959 WASHERS #8 C .625 (4 REQUIRED) $1.53
11S99260558 NUT, HEX LOCK #8-32 (4 REQUIRED) $1.51
12S97016869 GRILLE ASSEMBLY COMPLETE W/LENS DISCONTINUED, PLEASE USE PART # S97018274A SAN ALTERNATIVE .
14S99111401 LENS VERSION B RECTANGLE
12S97018274 GRILLE ASSEMBLY COMPLETE W/LENS REPLACEMENT FOR DISCONTINUED S97016869. $92.86
13S99140199 GRILLE SPRING (2 REQUIRED) $3.71
14S99111310 LENS (ORIGINAL VERSION#1 KIDNEY SHAPED)
15S99271358 FLUORESCENT BULB, 42 WATT $31.99
15S99271381 BULB FLOURCENT GU24-18WATT $12.11
16S97016864 BALLAST 5 PIN (ALTERNATIVE S97016618 6 PIN)
17S99260423 NUT, HEX #8-32 HOLDS BALLAST ONTO BRACKET (2 REQUIRED) SOLD EACH $1.53
18S97018014 SPACER(2) $2.29
 S99271426 Night Light $3.94
