NuTone QTREN110 Qtren Ventilation Fan 110 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QTREN110 Qtren Ventilation Fan 110 Cfm Parts

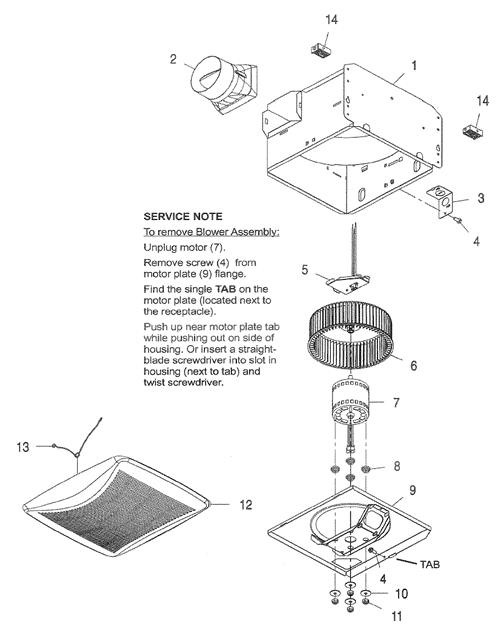

NuTone QTREN110 Qtren Ventilation Fan 110 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1S97016466 HOUSING $63.00
2S97016449 DUCT CONNECTOR-4" $19.80
3S98010102 WIRING PLATE $18.00
4S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
5S97018010 WIRE PANEL/HARNESS ASSEMBLY $18.00
6S99020284 BLOWER WHEEL - 8" x 2 3/4", CCW, Black Plastic version A $28.80
6S97017863 Blower Wheel - QTREN110-C, QTREN110F-B,C $18.00
7S97020971 Motor Assembly for "c" (no light) $144.90
7S97020050 Motor Assemble for (Lighted ) $153.90
7S97017854 MOTOR ASSEMBLY Motor/Blade/Flat Bracket- no light see s97020971
This product has been discontinued
7S97017856 Motor Assy for version#A prior to 7/08 w /ight see s97020050
This product has been discontinued
8S99100491 RUBBER MOUNT ISOLATOR (4 required) $18.00
9S97016467 MOTOR PLATE $13.21
10S99250959 WASHERS #8 c .625 (4 required) $18.00
11S99260558 NUT, Hex Lock #8-32 $18.00
12FG701 Upgrade Grille Assembly 13.25 X 13.25 10 or 7 spring gap $24.10
12S97017623 GRILLE W/SPRINGS Version #2 current
This product has been discontinued
13S99140199 GRILLE SPRING (2 required) $18.00
14S97018014 SPACER(2) $5.26
15SQTHB1 HANGER BARS (1 Set) $23.24
16S99420665 THUMBSCREW #8 - 18 x .375 $18.00
