NuTone QTREN080FLT Exhaust Fan with Light Parts

Listed below are the parts available for this model.

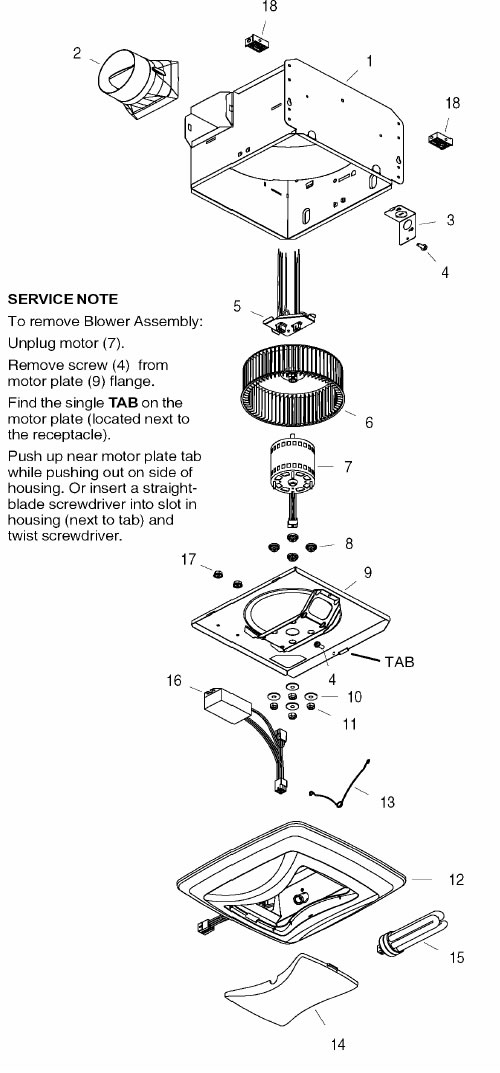

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QTREN080FLT Exhaust Fan with Light Parts
NuTone QTREN080FLT Exhaust Fan with Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  QTHB1 Hanger Bar Bracket Kit $18.36
1 S97016466 HOUSING $59.22
2 S97016449 DUCT CONNECTOR-4" $27.26
3 S98010102 WIRING PLATE $33.84
4 S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
5 S97018011 WIRE PANEL/HARNESS ASSEMBLY $33.84
6 S97017863 Blower Wheel - QTREN080FLFT-B,C, QTREN080FLT-B,C $27.26
6 S99020284 BLOWER WHEEL - 8" x 2 3/4", CCW, Black Plastic-A $33.84
7 S97020049 MOTOR ASSEMBLY Motor/Blade/Flat Bracket (A,B,C,D versions) $154.80
8 S99100491 RUBBER MOUNT ISOLATOR (4 required) $27.26
9 S97016901 MOTOR PLATE $11.74
10 S99250959 WASHERS #8 c .625 (4 required) $18.00
11 S99260558 NUT, Hex Lock #8-32 $18.00
11 S99260423 Motor Mounting Nut - QTREN080FLFT-B,C, QTREN080FLT-,B,C - #8-32 - 2 Required $18.00
12 S97018274 Grille Assembly Complete W/Lens Replacement for discontinued S97016869.
This product has been discontinued
12 S97016869 Grille Assembly Complete W/Lens Discontinued, please use part number S97018274 as an alternative.
This product has been discontinued
13 S99140199 GRILLE SPRING (2 required) $18.00
14 S99111310 LENS (version A kidney shape)
This product has been discontinued
14 S99111401 Lens (version B rectangle
This product has been discontinued
15 S99271381 BULB FLOURCENT GU24-18WATT (2 required sold each) $28.80
15 S99271358 FLUORESCENT BULB, 42 Watt $59.22
16 S97016864 BALLAST SEE S97016618 ( 6 PIN, WILL NEED TO MODIFIY)
This product has been discontinued
18 S97018014 SPACER(2) $27.26
  S99271426 Night Light $18.00
