NuTone QT90T Quiet Test Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QT90T Quiet Test Exhaust Fan Parts

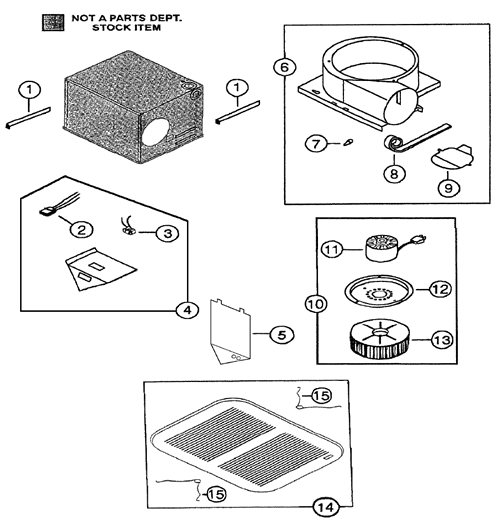

NuTone QT90T Quiet Test Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $1.48
3S99270982 RECEPTACLE (BLACK) $4.00
7S27358000 BUMPER $2.09
8S26572000 FOAM SEAL $2.41
9S65060000 LOUVER $2.66
10S86325000 POWER UNIT ASSEMBLY (motor, blade,bracket) $119.32
11S86323000 MOTOR - #JA2B089N, CW, Shaft Size 1/4" x 1" $53.06
12S65071000 MOTOR MOUNT BRACKET $9.72
13S44345000 BLOWER WHEEL - Metal, CCW, 5 3/4" x 2" $22.77
14S84607000 GRILLE/SPRINGS- (14 1/4" X 12" X 1/2") Obsoleted see FG701
10FG701 Universal CleanCover Grille/Cover (13.25 x 13.25) Replacement for S84607000 $17.60
15S0448A000 SPRING SET - 2
