NuTone QT9093 Heater Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QT9093 Heater Parts

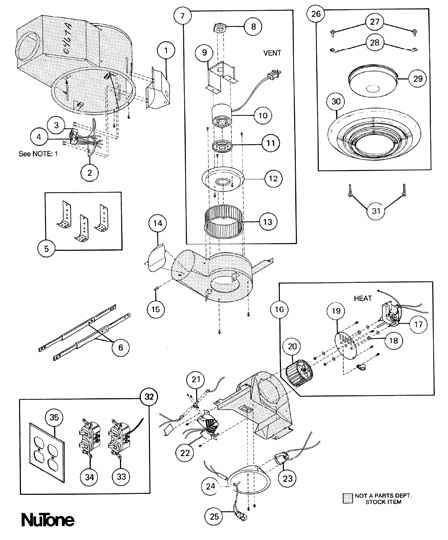

NuTone QT9093 Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  QT9093WH New Production QT9093wh
This product has been discontinued

1 S35623000 Outlet Box and Ground Screw Assembly $7.49
2 S35963000 Outlet Box Cover
This product has been discontinued

3 S66204000 Receptacle $27.26
4 S0480A000 Receptacle/Socket/Wire Assembly
This product has been discontinued

5 S57996000 Ceiling Mounting Bracket Assembly $4.48
6 S13306000 Hanger Bar Set $6.46
7 S1306A000 Power Unit Assembly - Vent see s0696b000
This product has been discontinued

7 S0696B000 Exhaust Assembly $165.44
8 S19359000 Motor Mount - Hex
This product has been discontinued

9 S27252000 Motor Support $4.55
10 S30434000 Motor - Vent SEE 0696B000)
This product has been discontinued

11 S19360000 Motor Mount - Hex
This product has been discontinued

12 S65071000 MOTOR MOUNT BRACKET $27.26
14 S65060000 Damper - Louver $27.26
12 S65071005 Motor Mount Bracket $8.64
15 S27358000 Bumper $2.09
13 SNT5901A000 Blower Wheel - White Plastic, CCW, 6-1/8" X 2" $27.26
16 1193A000 Power Unit Assembly - Heat
This product has been discontinued

17 S35971000 Motor - Heat - 2550RPM 13/64" Shaft $119.00
18 S69289000 Grommet Kit - (2) - (2) Eyelets (4) Washers
This product has been discontinued

19 S57766000 Motor Mount Plate Assembly
This product has been discontinued

20 S66583000 Blower Wheel - W/Set Screw - 3-3/4" x 2" Hole 13/64" $24.30
21 S99271494 Thermal Protector $27.26
22 S30243000 Heat Element - WO/Thermal Protector
This product has been discontinued

24 S35964000 REFLECTOR
This product has been discontinued

23 S30260000 Light Socket Assembly $18.00
24 S35964206 Reflector $5.03
26 S36271000 Grille Assembly (WHITE) $298.92
25 S35965000 Lamp Socket Assembly - Night Light $27.26
27 S27603015 Screw - (1) - For Lens Mounting Brackets $0.86
28 S56706000 Mounting Bracket - Lens $0.76
  S99271426 Night Light $18.00
30 S0469A000 Grille, white (does not include lens) $235.80
29 S27561000 Lens
This product has been discontinued

31 S101284000 Screw (1) - Grille $27.26
32 S85918000 Hardware Bag (Includes Switch Assembly Complete) $43.63
32 S30193000 Switch Assembly - Complete $39.88
33 K3149000 Switch - Double Toggle - W/Ground - 15 Amp. $34.51
33 S85921000 DOUBLE SWITCH BRIGHT WHITE $24.95
35 S85920000 SWITCH PLATE WALL $27.26
36 S1016B000 Vent Blower Assembly (see 0696B no housing)
This product has been discontinued

37 S1017B000 Heat Assembly Complete
This product has been discontinued

32 S85918000 Switch - Double Toggle - 15 Amp $43.63
