NuTone QT300 High Capacity Fan 375 Sq.Ft Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QT300 High Capacity Fan 375 Sq.Ft Parts

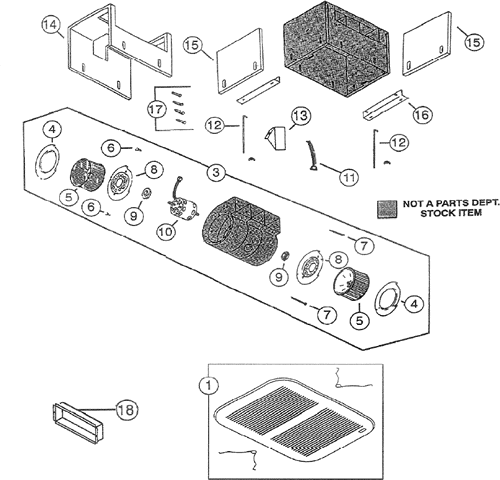

NuTone QT300 High Capacity Fan 375 Sq.Ft Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1S58732000 Grille for orignal prior to 1994 (12 spring gap prior to 1994
1S85668000 GRILLE & SPRING (16 1/2" X 12") (8.5 spring gap) after 1994 $12.29
3S58819000 MOTOR ASSY (includes everything inside box 3)
5S58824000 BLOWER WHEEL - Metal, CCW, 5 1/4" x 3"
558825000 BLOWER WHEEL - Metal, CW, 5 7/8" x 2 7/8"
9S19360000 MOTOR MOUNT HEX Jas# 8110181 $5.83
10S58840000 MOTOR Only (ja2r207n) $187.94
1158723000 PLUG $8.80
12S58835000 ROD - CLAMP $17.98
1358724000 JUNCTION BOX
15S58596000 INSULATION-END
16S58731000 HANGER BRacKeT $12.51
18S10940050 DAMPER $19.98
