NuTone QT150 Quiettest Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QT150 Quiettest Exhaust Fan Parts

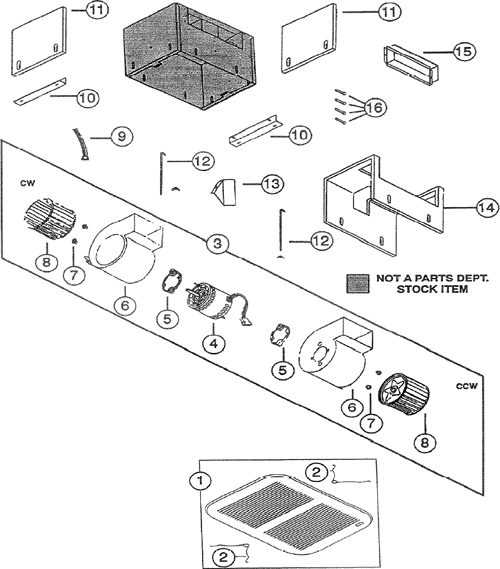

NuTone QT150 Quiettest Exhaust Fan Parts breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $0.82
1S85668000 GRILLE & SPRING (16 1/2" X 12") $13.00
70463A000 LOCKNUT GROMMET SET-4 $2.21
835740000 BLOWER WHEEL - CCW $15.16
958723000 PLUG HSG $8.80
1058731000 HANGER BRacKeT $6.82
11S58596000 INSULATION-END $5.09
1235741000 ROD CLAMP $3.37
1358724000 JUNCTION BOX $2.16
15S10940050 DAMPER $4.72
