NuTone QT140L QuieTTest Fan-Light

Listed below are the parts available for this model.

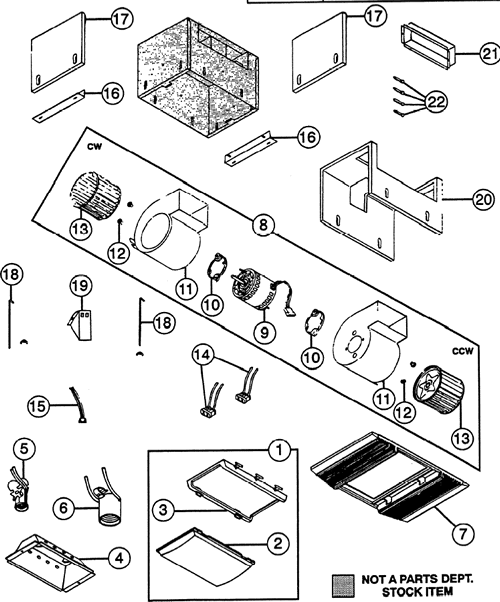

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."
NuTone QT140L QuieTTest Fan-Light
NuTone QT140L QuieTTest Fan-Light breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
110941174 BEZEL & LENS ASSEMBLY(grille sold Seperate see 89339) $21.58
4100173000 REFLECTOR $4.95
535759000 LAMP SOCKET-7W $6.39
699770112 LAMP SOCKET - 100W $9.09
789339000 GRILLE - 16" X 11" X 1 1/4" (lens sold seperate see 10941174) $27.07
435738000 MOTOR - #JA2N207N, JA2N207, CW, Shaft Size 1 3/8" x 5/16" x 1 3/8" $102.42
511415000 GASKET $5.18
120463A000 LOCKNUT GROMMET SET-4 $2.21
1335739000 BLOWER WHEEL - METAL, CW, 4 1/4" x 2 7/8" $15.16
1335740000 BLOWER WHEEL - CCW $15.16
14SNT10034000 RECEPTACLE (BLACK) $3.44
1558723000 PLUG $8.80
1658731000 HANGER BRacKeT $6.82
1758596000 INSULATION-END $5.09
1835741000 ROD CLAMP $3.37
1935728000 JUNCTION BOX $4.70
2035729000 INSULATION WRAPAROUND $12.82
2110940050 DAMPER ASSEMBLY $4.72
2258597000 RETAINER OIC 1 1/2x 1/2 $0.70
2310941181 HARDWARE BAG $1.55
