NuTone QT110H Smartsense Automatic Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QT110H Smartsense Automatic Fan Parts

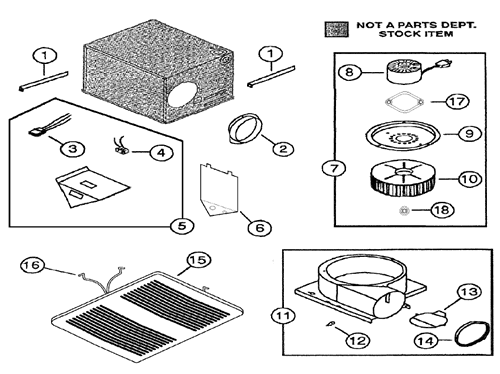

NuTone QT110H Smartsense Automatic Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  RCM700 Magnetic Universal CleanCover Bath Fan Replacement Grille 13x13 base 11 7/8 x 11 7/8 top cover $32.84
  RCM600 Magnetic CleanCover™ Bath Fan Replacement Grille with LED Light 12x12 base with 11 7/8 x 11 7/8 top cover $40.18
4 S99270982 RECEPTACLE (BLACK) $29.50
7 S0696B000 POWER UNIT ASSY $165.44
8 S86322000 MOTOR - #JA2C394N, CW, Shaft Size 1/4" x 1" $84.60
9 S65071000 MOTOR MOUNT BRACKET
This product has been discontinued
10 SNT5901A000 Blower Wheel - White Plastic, CCW, 6-1/8" X 2" $27.26
11 S1307A000 BLOWER HOUSING
This product has been discontinued
12 S27358000 BUMPER $2.09
13 S65060000 LOUVER
This product has been discontinued
14 S26572000 FOAM SEAL
This product has been discontinued
15 S84607000 GRILLE ASSY - (14 1/4" X 12" X 1/2") obsoleted see FG701
This product has been discontinued
15 FG701 Universal CleanCover Grille/Cover (13.25 x 13.25) Replacement for S84607000 $26.45
17 S32787000 MOTOR INSUL MOUNT Jas# 8114138 $27.26
18 S63007000 NUT-PUSH 1/4 $0.86
