NuTone QT110 Quiet Test Exhaust Fan 110Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QT110 Quiet Test Exhaust Fan 110Cfm Parts

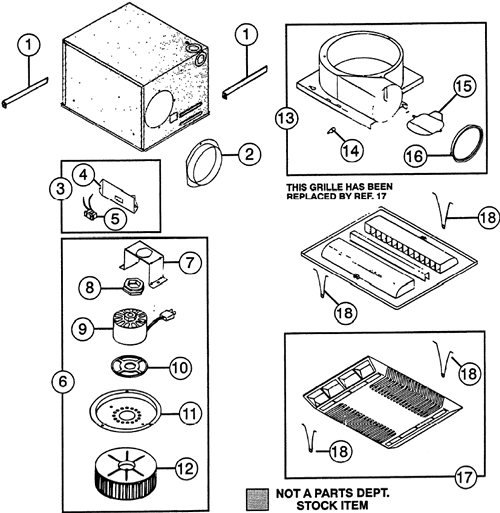

NuTone QT110 Quiet Test Exhaust Fan 110Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
3 S11119000 OUTLET BOX
This product has been discontinued

5 S99270982 RECEPTACLE (BLACK) $18.00
6 S0696B000 POWER UNIT ASSY, MOTOR/BLADE/FLAT BRACKET( for all versions) $165.44
9 S86322000 Motor Only for (new version 2008) $84.60
9 65072000 Motor -obsoleted see S0696b000 (ja2c119)
This product has been discontinued

8 S19359000 MOTOR MOUNT GASKET HEX (TOP OF MOTOR for older version)
This product has been discontinued

10 S19360000 MOTOR MOUNT HEX (BOTTOM OF MOTOR for older version)
This product has been discontinued

11 S65071000 MOTOR MOUNT BRACKET $27.26
12 SNT5901A000 Blower Wheel - White Plastic, CCW, 6-1/8" X 2" $27.26
13 S1307A000 BLOWER HOUSING
This product has been discontinued

14 S27538000 BUMPER $27.26
15 S65060000 LOUVER $27.26
16 S26572000 FOAM SEAL
This product has been discontinued

17 S84607000 GRILLE ASSY - (14 1/4" X 12" X 1/2") obsoleted see FG701
This product has been discontinued

17 FG701 Universal CleanCover Grille/Cover (13.25 x 13.25) Replacement for S84607000 $24.11
18 S0448A000 TORSION SPRING SET
This product has been discontinued

20 S32787000 MOTOR INSULLATE MOUNT GASKET(new production not hex motor $27.26
21 S63007000 NUT-PUSH 1/4 $0.86
17 65075000 Original Grille 13x11.25 w/ springs
This product has been discontinued
