NuTone QT100LHM Smartsense Automatic Fan-Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QT100LHM Smartsense Automatic Fan-Light Parts

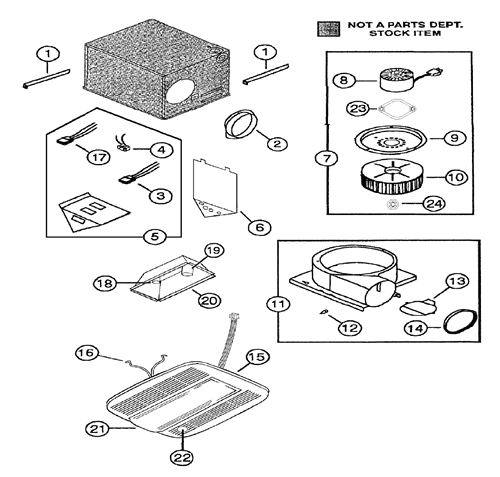

NuTone QT100LHM Smartsense Automatic Fan-Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
4S99270982 RECEPTACLE (BLACK) $4.00
6S89550000 PC BOARD - (includes humidity sensor) $221.66
7S0696B000 POWER UNIT ASSY $124.40
8S86322000 MOTOR - #JA2C394N, CW, Shaft Size 1/4" x 1" $54.13
9S65071000 MOTOR MOUNT BRACKET $9.72
10SNT5901A000 BLOWER WHEEL- White Plastic, CW, 6-1/8" x 2" $16.58
12S27358000 BUMPER $2.09
13S65060000 LOUVER $2.66
14S26572000 FOAM SEAL $2.41
18S85041000 LAMP SOCKET - Nite Lite $2.78
22S89556000 PC BOARD $30.87
23S32787000 MOTOR INSUL MOUNT Jas# 8114138 $3.82
24S63007000 NUT-PUSH 1/4 $0.86
25S84203000 SPEED CLIP
 S99271426 Night Light $3.94
