NuTone QT100FL Quiettest Fan-Light Parts

Listed below are the parts available for this model.

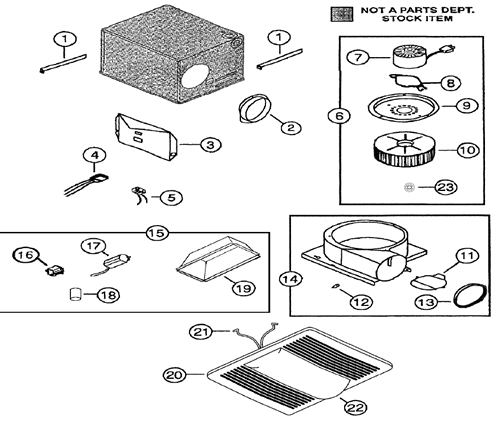

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QT100FL Quiettest Fan-Light Parts
NuTone QT100FL Quiettest Fan-Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
5 S99270982 RECEPTACLE (BLACK) $18.00
7 S86322000 MOTOR - #JA2C394N, CW, Shaft Size 1/4" x 1" $84.60
6 S0696B000 Motor/blade/bracket $165.44
8 S32787000 MOTOR INSUL MOUNT Jas# 8114138 $27.26
9 S65071000 MOTOR MOUNT BRACKET $27.26
10 SNT5901A000 Blower Wheel - White Plastic, CCW, 6-1/8" X 2" $27.26
11 S65060000 LOUVER $27.26
12 S27538000 BUMPER $27.26
13 S26572000 FOAM SEAL
This product has been discontinued

14 S1307A000 BLOWER HOUSING ASSY
This product has been discontinued

18 S85041000 LAMP SOCKET - Nite Lite $2.78
23 S63007000 NUT-PUSH 1/4 $0.86
24 S84203000 SPEED CLIP
This product has been discontinued

  S99271426 Night Light $18.00
  85984000 Grille/Lens obsoleted-obsoleted no parts available
This product has been discontinued
