NuTone PM250 Power Module Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone PM250 Power Module Parts

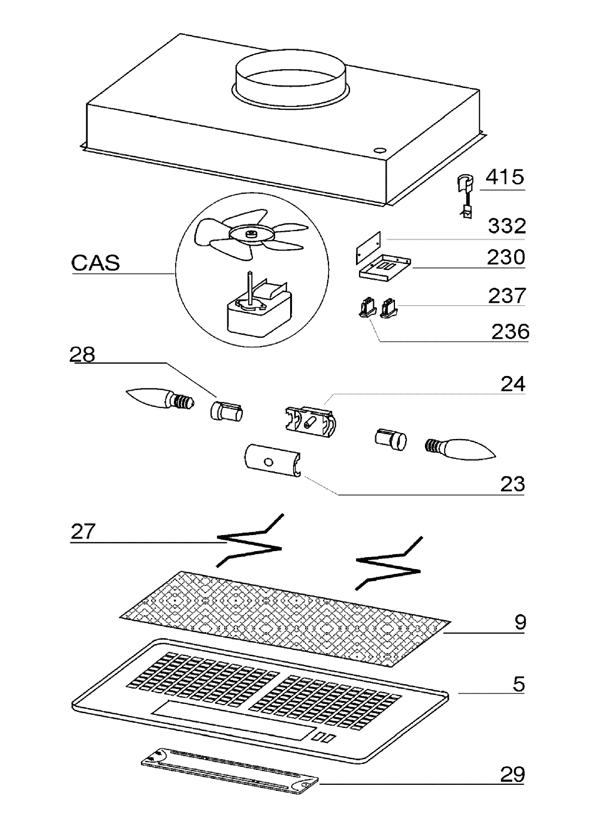

NuTone PM250 Power Module Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 PM250 New Current Production (20.5x11.25x2.5) see pm300ss
This product has been discontinued

 SB02300264 Bulb - Candelabra Type T8, E12 Base, 120 Volt, 40 $18.00
 SB02300264 LED 2700K 5 W MED BASE $18.00
CASSR730090 MOTOR/FAN BLADE (version A, B) $99.00
5SB03118152 GRILLE - White (version A,) $61.25
5S97018550 GRILLE - Silver (version A,B) $89.10
9S99010370 GREASE FILTER 5 7/8 x 16 7/8 $18.00
9SB08999040 NON-DUCT FILTER 5 7/8 x 16 7/8 $25.20
27SB02011155 FILTER WIRES $7.96
27S98010831 Fiter Retainer Wire version A $18.00
28SB02300280 LAMPHOLDER version A $18.00
28SB06108604 SOCKET ASSEMBLY $33.40
28S97018557 Lamp Socet Assembly (includes both sockets & wire harnes) version A $54.00
23SB03295094 Lower Lamp Holder Bracket $18.00
29SB03294757 LIGHT LENS $18.00
230SBE3348475 CONTROLL BOX COVER version A $25.20
230S98010828 Switch Cover Plate version B $2.29
236SB02300822 BLOWER SWITCH - White version A $18.00
236S99030347 BLOWER SWITCH - Black version B $18.00
237SB02300823 LIGHT SWITCH - White version A $18.00
237S99030342 Rocker Switch - 2 Position - Black version b $18.00
237SB02300827 LIGHT SWITCH - Black version A $2.54
332SBE3248476 CONTROL BOX COVER $8.72
332S98010839 Electrical Box Cover version B $1.21
332S98010839 Electrical Box Cover version A $1.21
415S99400048 Strain Relief Bushing version A,B $1.80
