NuTone NS6500 Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone NS6500 Range Hood Parts

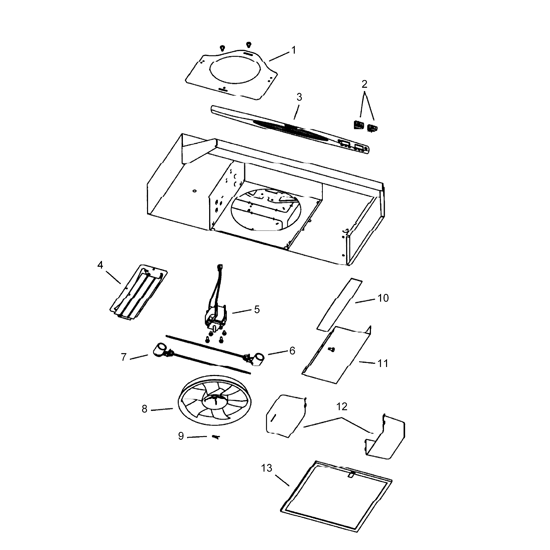

NuTone NS6500 Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S97010792 7" Round Inline Damper $41.40
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
0HCK44 Cord Kit with 6' cord and plug $42.30
2SR680508 7 Inch Duct Plate $39.60
2SR561157 SWITCH - Black $40.50
2SR561159 SWITCH - White see S97016971
This product has been discontinued

2S97016971 Switch 3 position White kit $18.00
2SR561163 SWITCH - Biscuit
This product has been discontinued

3SR401651 GRILLE - White
This product has been discontinued

4SR740014 DAMPER/DUCT ASSEMBLY - 3 1/4" x 10" $21.74
5S99080666 MOTOR - #JE6P61K38 $90.90
9SR607225 Hitch Pin / Hairpin Clip used to Attach Fan Blade to Motor see sr99420635
This product has been discontinued

6S99271236 LAMP SOCKET ASSEMBLY (Short Wires) $18.00
7SR566097 LAMP SOCKET ASSEMBLY (Long Wires)
This product has been discontinued

8SR531076 FAN BLADE $24.46
9SR99420635 EXTERNAL HITCH PIN - Hairpin for holding blower wheel to motor $18.00
10SR99091071 BLACK BAFFLE $18.00
10SR99091072 WHITE BAFFLE
This product has been discontinued

10SR99091073 BISQUIT BAFFLE $18.00
12SR401650 LIGHT LENS sold each (2 on each hood) $18.00
13SR610092 ALUMINUM FILTER (11 1/4 x 11 5/8) $29.70
13S99010317 NON-DUCT FILTER - (11 1/4" X 11 3/4") $18.00
