NuTone MM6500N Convertible Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone MM6500N Convertible Range Hood Parts

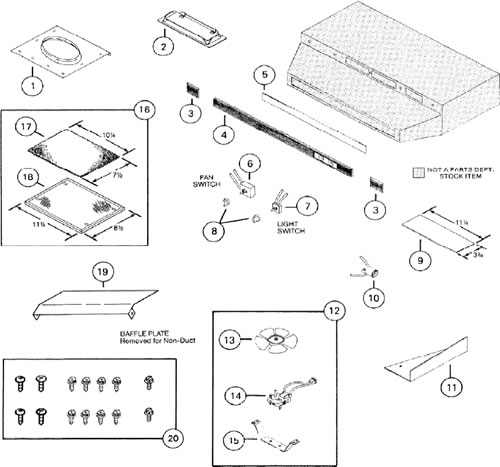

NuTone MM6500N Convertible Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
0 HCK44 Cord Kit with 6' cord and plug $42.30
1 SR680508 7" ROUND DUCT PLATE $37.60
6 S26546000 SPEED SWITCH-FAN $61.10
7 SR561138 SWITCH LIGHT $27.26
8 S600348 BLACK KNOB (2 NEEDED) SOLD EACH $27.26
9 SK1224000 LAMP COVER PLASTIC (11 1/4 x 3 3/4) $27.26
12 K3601000 Modified MOTOR-cw/blade - (modified replacement to work Motor/Blade) $85.50
16 SK3595000 FILTER ALUMINUM/BLACKPAD 11 1/4 x 8 7/16 $33.84
17 SK3565000 BLACK SMOKE - PAD $18.00
