NuTone M621 Utility Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone M621 Utility Fan Parts

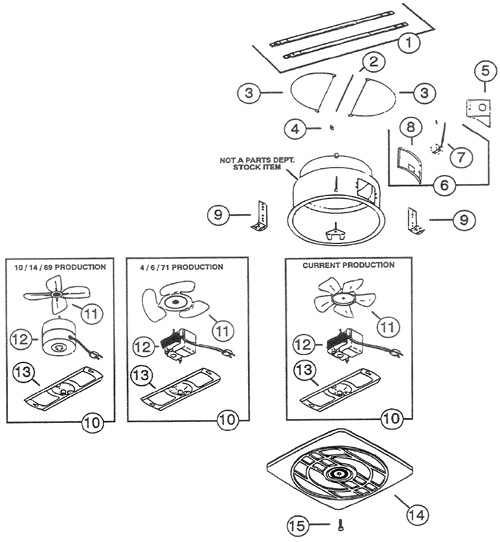

NuTone M621 Utility Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
  S99010042 ALUMINUM FILTER - 9 1/2" Diameter $27.26
3 S16754000 DAMPER HALF $6.68
7 S99270982 RECEPTACLE (BLACK) $18.00
13 S11829000 MOTOR BRACKET
This product has been discontinued

11 S16631000 Metal 5fin Fan Blade cw 6" w/1/4 bore hole for s16653ser motor $41.36
11 S68293000 Blade 5 Plastic to fit on 34417 $27.26
12 S34417000 Motor (Latest Version) cw D" Shaft (use with s68293 blade) $98.70
12 S16653SER Motor Modified (CW 1" SHAFT 1/4diam) "A" - Original 1969 To Fit On Metal 3 Blade(Round Barrel) $101.75
14 S99111332 Grille round white plastic 11" $42.30
15 S97011918 knob white for round plastic
This product has been discontinued

16 S99420585 screw for knob white round plastic $33.84
