NuTone CV653 Central Vacuum Can Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone CV653 Central Vacuum Can Parts

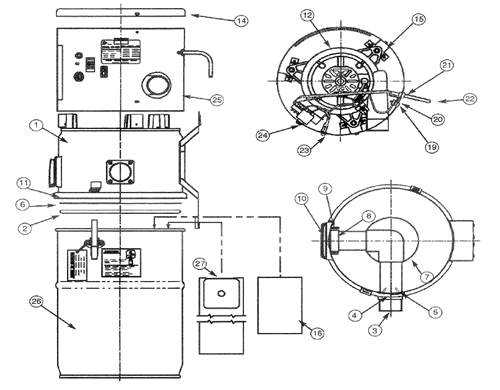

NuTone CV653 Central Vacuum Can Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
27 391 REPLACEMENT VAC BAGS (3) $14.95
1 32984206 MOTOR HOUSING ASSY
This product has been discontinued

2 S84128000 SECONDARY FILTER $55.80
4 S63089000 GASKET
This product has been discontinued

5 52834015 SCREW 8X3/4 PH PAN HD A $0.04
6 44334000 FILTER SUPPORT
This product has been discontinued

12 S33883REB MOTOR - BNC# 10941101 $588.26
13 S30364000 MOTOR GASKET
This product has been discontinued

14 87150000 COVER ASSEMBLY BNC# 10941145 $16.02
16 33541000 HARDWARE BAG
This product has been discontinued

20 52833015 SCREW 8-32X3/4 PH PAN HD M
This product has been discontinued

21 65495000 STRAIN RELIEF
This product has been discontinued

22 87055000 CORD SET ASSY
This product has been discontinued

24 S87119000 CONTROL BOARD
This product has been discontinued

26 35910000 LOW PAIL/CLAMP BNC# 10941108
This product has been discontinued

  S33836000 WALL PLATE ASY
This product has been discontinued
