NuTone CV550 Cyclonic Central Vacuum Can Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone CV550 Cyclonic Central Vacuum Can Parts

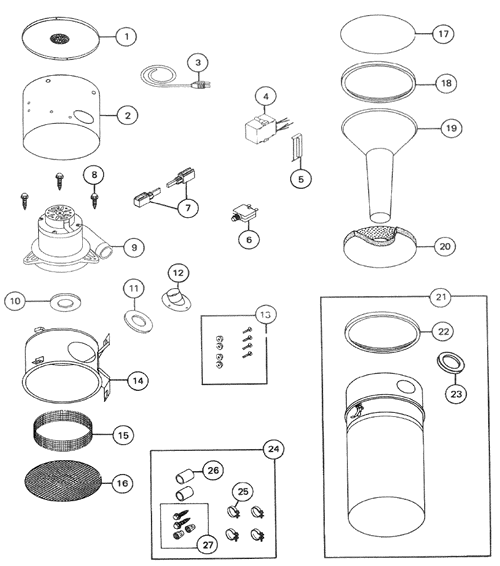

NuTone CV550 Cyclonic Central Vacuum Can Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
189013206 COVER ASSY $12.08
4S0521B000 RELAY ASSY BNC 10941103 $47.54
6S1853A000 CIRCUIT BREAKER $23.00
933882REB MOTOR ASSY - BNC # 10941116 $441.32
10S30364000 MOTOR GASKET $16.60
17S30197000 FILTER $6.08
2433541000 HARDWARE BAG ASSY $16.58
2565959000 CLAMP VEN# G-20PH BNC 30420011 $1.42
2665960000 CONNECTOR
2734800000 HARDWARE PKG
