NuTone CV450 Central Vacuum Can Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone CV450 Central Vacuum Can Parts

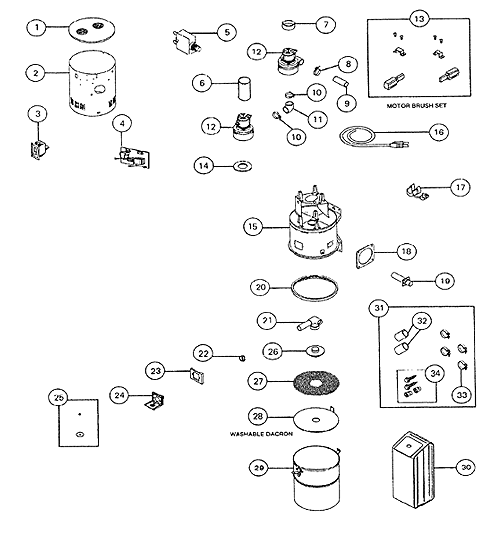

NuTone CV450 Central Vacuum Can Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 391 REPLACEMENT VAC BAGS (3) $14.95
1 35851206 TOP COVER ASSY $17.89
2 35854206 WRAPPER $28.02
4 S10941147 RELAY for CV450/CV400
This product has been discontinued

4 S0521B000 Relay (early version) see s10941147
This product has been discontinued

5 S1853A000 CIRCUIT BREAKER
This product has been discontinued

6 35850000 COOLING VENT TUBE $11.82
7 30986000 COLLAR $2.32
8 39970000 CLAMP VENDOR # G-107PH $0.70
9 35859000 TUBE - EXHAUST $15.52
10 39971000 CLAMP VENDOR # G-21PH $1.44
11 30796000 MOTOR CONNECTOR $14.04
12 S44901REB MOTOR ASSY - UP BNC# 10941099 $390.60
12 S44902REB MOTOR ASSY - LOW BNC# 10941100 $579.60
13 S1803A000 BRUSH SET (2) $27.61
14 S30364000 MOTOR GASKET
This product has been discontinued

15 35845206 UPPER PAIL & BRKT ASSY $107.86
18 S63089000 GASKET
This product has been discontinued

19 S33626000 MLD FLANGE ASY BNC 10941120
This product has been discontinued

21 33627000 TUBE ASSY BNC# 10941114
This product has been discontinued

28 S84129000 FILTER $50.40
32 65960000 CONNECTOR
This product has been discontinued

33 65959000 CLAMP VEN# G-20PH BNC 30420011 $1.42
34 34800000 HARDWARE PKG
This product has been discontinued

31 S33836000 WALL PLATE ASY $86.40
  S33846000 Bottom Pail $68.40
